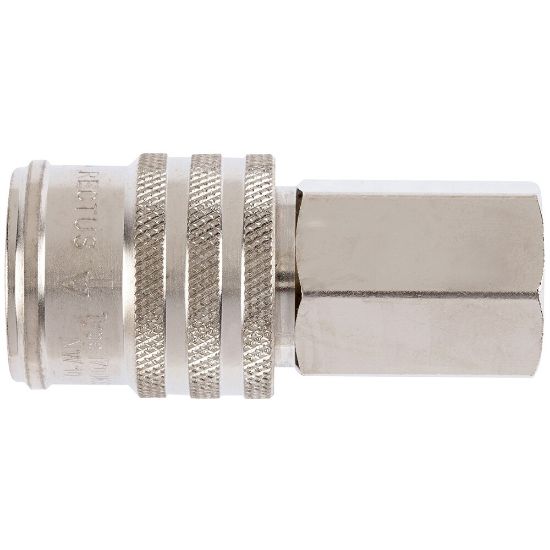

Quick coupling, European Profile ND 10 (Series 27, Series 1700, Series 1727) - 1700KEIW26SPN

Name: Quick coupling, European Profile ND 10 (Series 27, Series 1700, Series 1727) - 1700KEIW26SPN
SKU: 1700KEIW26SPN
Availability: OutOfStock

Premium quick coupling system with nominal diameter 10 for pneumatic and fluid handling applications up to 35 bar. Coupling system with the largest standard European profile. Available made of brass/steel or stainless steel.

Availability:

Backordered

SKU: 1700KEIW26SPN

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Quantity per Box	1
Division	Low Pressure Connectors Europe Division	Body Material	Steel
Seal Material	NBR	For Fluid Type	Compressed Air
Shape	Straight	Minimum Operating Temperature	-4 °F
Industry	Transportation	Coupling Half	Coupler
Maximum Operating Temperature	212 °F	Technology	Pneumatics
Hex Size	32 mm	Region of Origin	Germany
Specifications Met	ATEX	Product Style	Quick-Connect
Maximum Operating Pressure	up to 174 psi	Brand	Rectus
Function	Self-Venting System	Valve Type	Ultra High Flow Valve
Plating Type	Nickel-plated	Product Type	Pneumatic Quick Couplings
Operation Type	Sleeve	Interchange Type	European Profile
Weight	0.2779 kg	Flow Rate	3500 L/min
Connection Type	BSPP ISO 228 Parallel	Length	33 to 76 mm
Application	Mobile & Defense	Diameter	10 mm (nominal)
Product Series	Series 1700	Connection Size	G3/4
Sleeve Material	Steel (QPQ-treated)	Compatible Fitting	Series 27 Plug
Materials of Construction	Steel	Version	Self-Venting System
Coupling Half	Coupler	Connection Type	Female, BSPP
Connection Size	3/4"
