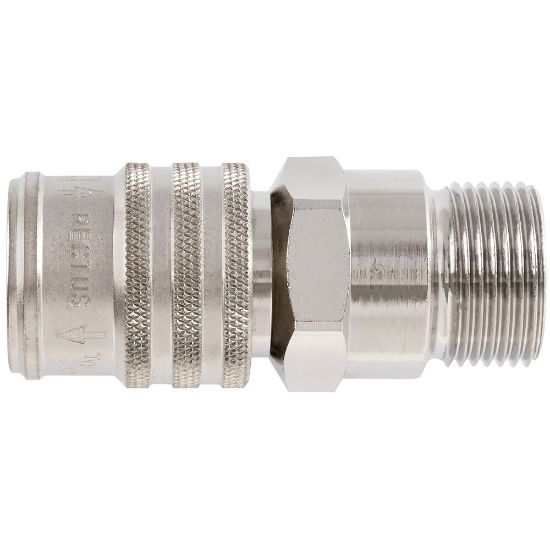

Quick coupling, European Profile ND 10 (Series 27, Series 1700, Series 1727) - 1700KEAW17SPN

Name: Quick coupling, European Profile ND 10 (Series 27, Series 1700, Series 1727) - 1700KEAW17SPN
SKU: 1700KEAW17SPN
Availability: OutOfStock

Premium quick coupling system with nominal diameter 10 for pneumatic and fluid handling applications up to 35 bar. Coupling system with the largest standard European profile. Available made of brass/steel or stainless steel.

Availability:

Backordered

SKU: 1700KEAW17SPN

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Quantity per Box	1
Division	Low Pressure Connectors Europe Division	Body Material	Steel
Seal Material	NBR	For Fluid Type	Compressed Air
Brand	Parker	Shape	Straight
Minimum Operating Temperature	-4 °F	Industry	Transportation
Coupling Half	Coupler	Maximum Operating Temperature	212 °F
Connection Size	G3/8	Technology	Pneumatics
Hex Size	24 mm	Region of Origin	Germany
Connection Type	Male	Specifications Met	ATEX
Product Style	Quick-Connect	Maximum Operating Pressure	up to 174 psi
Function	Self-Venting System	Valve Type	Ultra High Flow Valve
Plating Type	Nickel-plated	Product Type	Pneumatic Quick Couplings
Operation Type	Sleeve	Interchange Type	European Profile
Weight	0.1786 kg	Flow Rate	3500 L/min
Length	33 to 76 mm	Application	Industrial Equipment
Diameter	10 mm (nominal)	Product Series	Series 1700
Sleeve Material	Steel (QPQ-treated)	Compatible Fitting	Series 27 Plug
Materials of Construction	Steel	Version	Self-Venting System
Coupling Half	Coupler	Connection Size	3/8"
Connection Type	Male, BSPP
