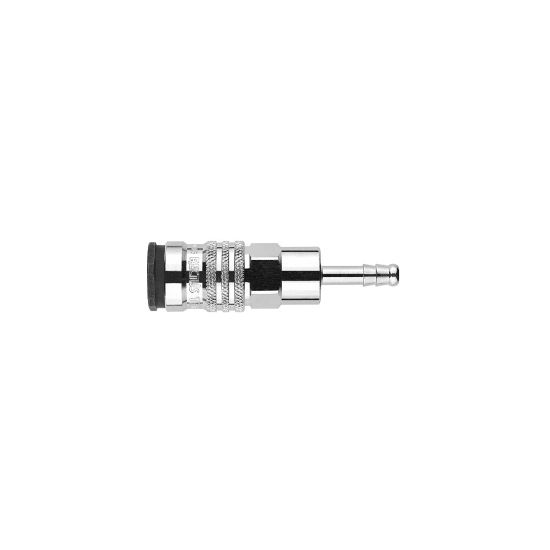

Quick coupling, European Profile ND 10 (Series 27, Series 1700, Series 1727) - 1700KBTF16BPN

Name: Quick coupling, European Profile ND 10 (Series 27, Series 1700, Series 1727) - 1700KBTF16BPN
SKU: 1700KBTF16BPN
Availability: OutOfStock

Premium quick coupling system with nominal diameter 10 for pneumatic and fluid handling applications up to 35 bar. Coupling system with the largest standard European profile. Available made of brass/steel or stainless steel.

Availability:

Backordered

SKU: 1700KBTF16BPN

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Quantity per Box	1
Division	Low Pressure Connectors Europe Division	Application	Industrial Machinery
Body Material	BRASS	Maximum Operating Temperature	100 °C
Minimum Operating Temperature	-20 °C	Seal Material	NBR
Specifications Met	RoHS	For Fluid Type	Compressed Air
Shape	Straight	Coupling Half	Coupler
Technology	Pneumatics	Outside Diameter	27 mm
Hex Size	24 mm	Region of Origin	Germany
Connection Type	Hose Barb	Product Style	Quick-Connect
Maximum Operating Pressure	up to 35 bar	Brand	Rectus
Length	79.5 mm	Valve Type	Ultra High Flow Valve
Plating Type	Nickel-plated	Product Type	Pneumatic Quick Couplings
Operation Type	Sleeve	Interchange Type	European Profile
Function	Double Shut-Off	Flow Rate	1054 L/min
Diameter	10 mm (nominal)	Industry	Electronics
Product Series	Series 1700	Connection Size	16 mm
Sleeve Material	Steel (QPQ-treated)	Compatible Fitting	Series 27 Plug
Connection Type	Hose Barb	Materials of Construction	Brass
Version	Double Shut-Off	Coupling Half	Coupler
Connection Size	16 mm
