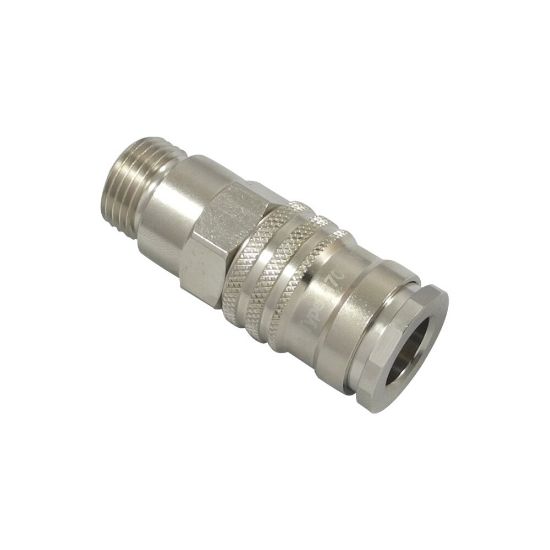

Quick coupling, European Profile ND 10 (Series 27, Series 1700, Series 1727) - 1700KBAW21BPN

Name: Quick coupling, European Profile ND 10 (Series 27, Series 1700, Series 1727) - 1700KBAW21BPN
SKU: 1700KBAW21BPN
Availability: OutOfStock

Premium quick coupling system with nominal diameter 10 for pneumatic and fluid handling applications up to 35 bar. Coupling system with the largest standard European profile. Available made of brass/steel or stainless steel.

Availability:

Backordered

SKU: 1700KBAW21BPN

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Quantity per Box	1
Division	Low Pressure Connectors Europe Division	Body Material	BRASS
Seal Material	NBR	Specifications Met	RoHS
Shape	Straight	Minimum Operating Temperature	-4 °F
Coupling Half	Coupler	Maximum Operating Temperature	212 °F
For Fluid Type	Air	Technology	Pneumatics
Outside Diameter	27 mm	Application	Electronics
Hex Size	24 mm	Region of Origin	Germany
Connection Type	Male	Product Style	Quick-Connect
Maximum Operating Pressure	up to 35 bar	Brand	Rectus
Valve Type	Ultra High Flow Valve	Plating Type	Nickel-plated
Product Type	Pneumatic Quick Couplings	Operation Type	Sleeve
Connection Size	G 1/2	Interchange Type	European Profile
Function	Double Shut-Off	Flow Rate	1054 L/min
Length	69.5 mm	Diameter	10 mm (nominal)
Industry	Electronics	Product Series	Series 1700
Sleeve Material	Steel (QPQ-treated)	Compatible Fitting	Series 27 Plug
Materials of Construction	Brass	Version	Double Shut-Off
Coupling Half	Coupler	Connection Size	1/2"
Connection Type	Male, BSPP
