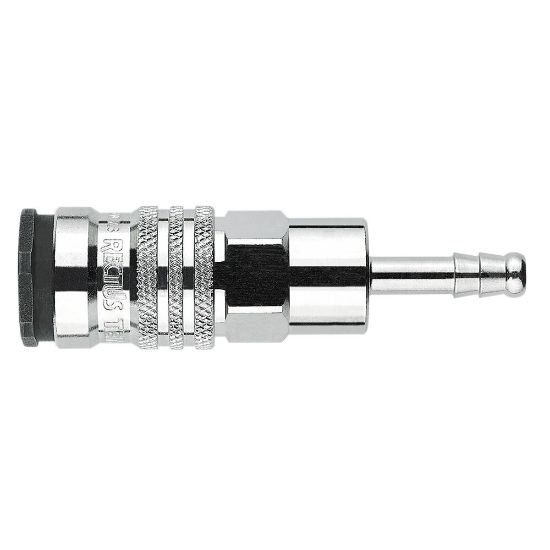

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Quick coupling, European Profile ND 10 (Series 27, Series 1700, Series 1727) - 1700KATF19SPN

Name: Quick coupling, European Profile ND 10 (Series 27, Series 1700, Series 1727) - 1700KATF19SPN
SKU: 1700KATF19SPN
Availability: OutOfStock

Premium quick coupling system with nominal diameter 10 for pneumatic and fluid handling applications up to 35 bar. Coupling system with the largest standard European profile. Available made of brass/steel or stainless steel.

Availability:

Backordered

SKU: 1700KATF19SPN

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Quantity per Box	5
Division	Low Pressure Connectors Europe Division	Minimum Operating Temperature	-20 °C
Body Material	Steel	Seal Material	NBR
For Fluid Type	Compressed Air	Shape	Straight
Coupling Half	Coupler	Maximum Operating Temperature	212 °F
Technology	Pneumatics	Industry	General Industrial
Outside Diameter	27 mm	Application	Electronics
Hex Size	24 mm	Length	80 mm
Region of Origin	Germany	Connection Type	Hose Barb
Specifications Met	ATEX	Product Style	Quick-Connect
Maximum Operating Pressure	up to 35 bar	Brand	Rectus
Function	Single Shut-Off	Valve Type	Ultra High Flow Valve
Plating Type	Nickel-plated	Product Type	Pneumatic Quick Couplings
Operation Type	Sleeve	Interchange Type	European Profile
Flow Rate	3580 L/min	Diameter	10 mm (nominal)
Product Series	Series 1700	Connection Size	19 mm
Sleeve Material	Steel (QPQ-treated)	Compatible Fitting	Series 27 Plug
Materials of Construction	Steel	Connection Type	Hose Barb
Version	Single Shut-Off	Coupling Half	Coupler
Connection Size	19 mm
