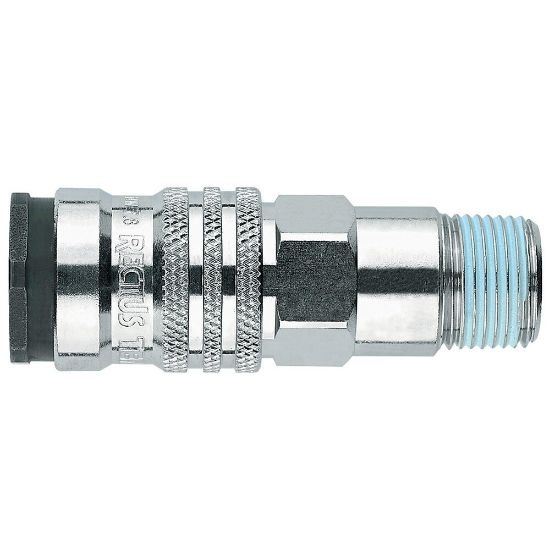

Quick coupling, European Profile ND 10 (Series 27, Series 1700, Series 1727) - 1700KAAK17SPN

Name: Quick coupling, European Profile ND 10 (Series 27, Series 1700, Series 1727) - 1700KAAK17SPN
SKU: 1700KAAK17SPN
Availability: OutOfStock

Premium quick coupling system with nominal diameter 10 for pneumatic and fluid handling applications up to 35 bar. Coupling system with the largest standard European profile. Available made of brass/steel or stainless steel.

Availability:

Backordered

SKU: 1700KAAK17SPN

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Quantity per Box	5
Division	Low Pressure Connectors Europe Division	Maximum Operating Temperature	100 °C
Minimum Operating Temperature	-20 °C	Body Material	Steel
Seal Material	NBR	Specifications Met	RoHS
For Fluid Type	Compressed Air	Shape	Straight
Coupling Half	Coupler	Technology	Pneumatics
Length	70 mm	Outside Diameter	27 mm
Hex Size	24 mm	Region of Origin	Germany
Application	Air & Gas Compressor	Product Style	Quick-Connect
Maximum Operating Pressure	up to 35 bar	Brand	Rectus
Function	Single Shut-Off	Valve Type	Ultra High Flow Valve
Plating Type	Nickel-plated	Product Type	Pneumatic Quick Couplings
Operation Type	Sleeve	Connection Size	R 3/8
Interchange Type	European Profile	Flow Rate	3580 L/min
Connection Type	BSPT DIN 2999 Tapered	Diameter	10 mm (nominal)
Industry	Electronics	Product Series	Series 1700
Sleeve Material	Steel (QPQ-treated)	Compatible Fitting	Series 27 Plug
Materials of Construction	Steel	Version	Single Shut-Off
Coupling Half	Coupler	Connection Size	3/8"
Connection Type	Male, BSPT
