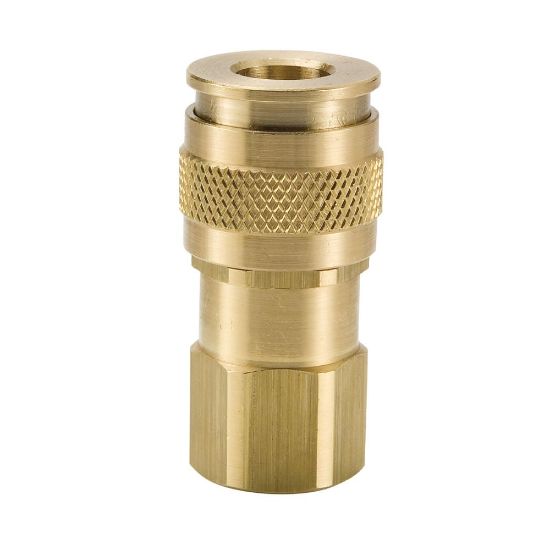

Push to Connect, Universal Interchange, Quick Connect Air Couplers - UC Series - UC-251-6FP

Parker's general purpose pneumatic, air quick couplers and nipples are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.

Availability:	1 in stock
Partner Available:	9 in stock

SKU: UC-251-6FP

$34.45

Products specifications

Attribute name	Attribute value
Valve Type	Tubular	Division	Quick Coupling Division
Coupling Half	Coupler	Body Material	BRASS
Sleeve Type	Push to Connect	Specifications Met	Connects with Industrial Interchange, 10 series (Tru-Flate), and 50 series (ARO 210) style nipples
Seal Material	Nitrile	Body Size	1/4 inch
Application	Air	Maximum Operating Temperature	250 °F
Maximum Operating Pressure	150 psi	Dimensional Weight	0.06291129496402877 lb
Lock Type	Locking balls	Minimum Operating Temperature	-40 °F
Media	Low pressure fluids and compressed air
Thread Style	Female	Connection Type	NPTF
Connection Thread Size (inch)	3/8 - 18

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories
