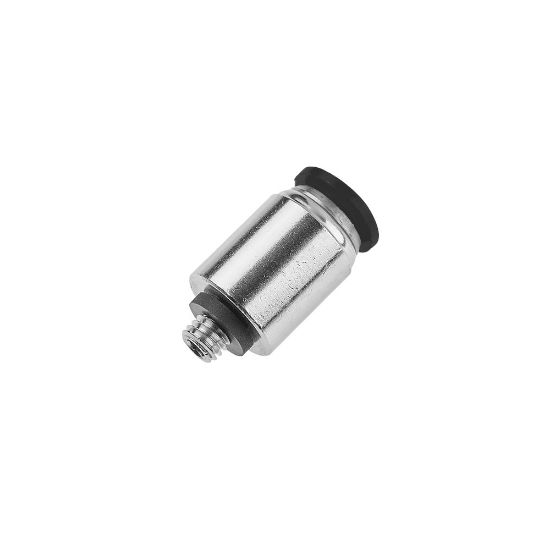

Push-to-Connect Nickel Plated Instant Fittings - Prestolok PLP Metal - W68PLPR-4-1

Parker's Prestolok PLP push-to-connect fittings offer improved throughput, increased efficiency, smaller footprints, faster assembly and leak-reducing innovation.

Availability:	Backordered
Partner Available:	10 in stock

SKU: W68PLPR-4-1

$19.52

Products specifications

Attribute name	Attribute value
For Fluid Type	Inert Gases	Tube Material	Nylon
Application	Automotive	Seal Material	Nitrile
Division	Fluid System Connectors Division	Materials of Construction	PVDF (Button)
Maximum Operating Temperature	93.3 °C	Maximum Operating Pressure	300 psi
Gripping Ring Material	STAINLESS STEEL	Technology	Fluid & Gas Handling
Minimum Operating Temperature	0 °F	Vacuum Pressure Rating	28 Inch-Hg
Brand	Parker	Division	Fluid System Connectors Division
Industry	Automotive	Body Material	Brass, Nickel-plated
Region of Origin	United States	Specifications Met	UL 94 V-0
Hex Size	5/32 inch
Configuration	Tube to Pipe	Connection 2 Size	1/16"
Connection 1 Type	Push-to-Connect	Product Style	Round Body Connector
Connection 1 Size	1/4"	Connection 2 Type	Male NPTF
