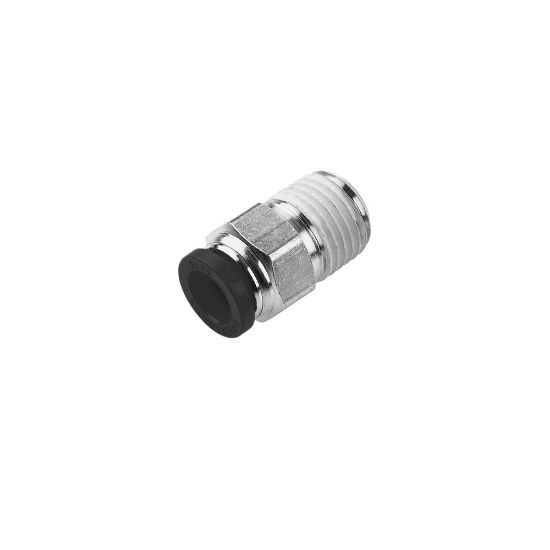

Push-to-Connect Nickel Plated Instant Fittings - Prestolok PLP Metal - W68PLP-8-6

Parker's Prestolok PLP push-to-connect fittings offer improved throughput, increased efficiency, smaller footprints, faster assembly and leak-reducing innovation.

Availability:	99 in stock
Partner Available:	1511 in stock

SKU: W68PLP-8-6

$12.51

Products specifications

Attribute name	Attribute value
Dimensional Weight	0.2179 lb	Body Material	Brass, Nickel-plated
Maximum Operating Pressure	20.6 bar	Specifications Met	UL 94 V-0
Region of Origin	United States	For Fluid Type	Inert Gases
Hex Size	13/16 inch	Division	Fluid System Connectors Division
Seal Material	Nitrile	Industry	Industrial Manufacturing Equipment
Application	Air Lines	Gripping Ring Material	STAINLESS STEEL
Materials of Construction	PVDF (Button)	Vacuum Pressure Rating	28 Inch-Hg
Minimum Operating Temperature	0 °F	Division	Fluid System Connectors Division
Brand	Parker	Maximum Operating Temperature	200 °F
Technology	Pneumatics	Tube Material	Polyethylene
Connection 2 Size	3/8"	Configuration	Tube to Pipe
Product Style	Connector	Connection 1 Size	1/2"
Connection 1 Type	Push-to-Connect	Connection 2 Type	Male NPTF
