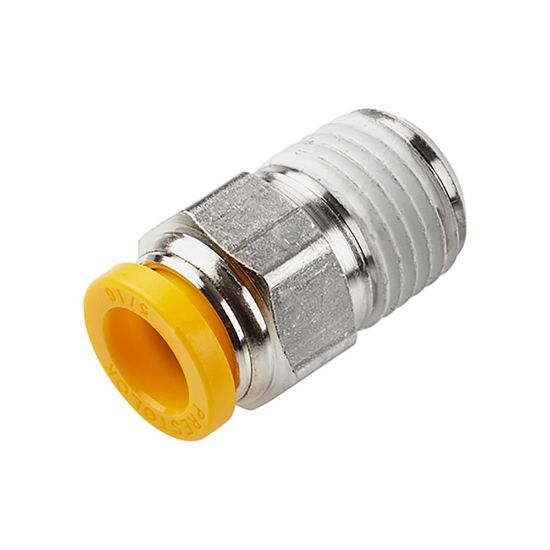

Push-to-Connect Nickel Plated Instant Fittings - Prestolok PLP Metal - W68PLP-6M-6R

Name: Push-to-Connect Nickel Plated Instant Fittings - Prestolok PLP Metal - W68PLP-6M-6R
SKU: W68PLP-6M-6R
Availability: OutOfStock

Parker's Prestolok PLP push-to-connect fittings offer improved throughput, increased efficiency, smaller footprints, faster assembly and leak-reducing innovation.

Availability:

Backordered

SKU: W68PLP-6M-6R

Qty:

Products specifications

Attribute name	Attribute value
Division	Fluid System Connectors Division	Materials of Construction	PVDF (Button)
Seal Material	Nitrile	Maximum Operating Temperature	93.3 °C
For Fluid Type	Oil	Maximum Operating Pressure	300 psi
Gripping Ring Material	STAINLESS STEEL	Application	Oil Lines
Vacuum Pressure Rating	28 Inch-Hg	Minimum Operating Temperature	-17.7 °C
Division	Fluid System Connectors Division	Tube Material	Polyurethane 90 to 95 Durometer Shore A
Brand	Parker	Region of Origin	United States
Technology	Pneumatics	Specifications Met	UL 94 V-0
Industry	Automotive	Body Material	Brass, Nickel-plated
Hex Size	11/16 inch
Configuration	Tube to Pipe	Product Style	Connector
Connection 1 Size	6 mm	Connection 1 Type	Push-to-Connect
Connection 2 Size	3/8"	Connection 2 Type	Male BSPT
