Push-to-Connect Nickel Plated Instant Fittings - Prestolok PLP Metal - W68PLP-5-2

Parker's Prestolok PLP push-to-connect fittings offer improved throughput, increased efficiency, smaller footprints, faster assembly and leak-reducing innovation.

Availability:	32 in stock
Partner Available:	582 in stock

SKU: W68PLP-5-2

$6.05

Products specifications

Attribute name	Attribute value
Minimum Operating Temperature	0 °F	Application	Oil Lines
Vacuum Pressure Rating	28 Inch-Hg	Division	Fluid System Connectors Division
Brand	Parker	Specifications Met	UL 94 V-0
Maximum Operating Temperature	200 °F	Dimensional Weight	0.2179 lb
Technology	Pneumatics	Maximum Operating Pressure	20.6 bar
Industry	Automotive	Region of Origin	United States
Body Material	Brass, Nickel-plated	Seal Material	Nitrile
Hex Size	9/16 inch	Tube Material	Nylon
Division	Fluid System Connectors Division	Materials of Construction	PVDF (Button)
Gripping Ring Material	STAINLESS STEEL	For Fluid Type	Oil
Connection 1 Type	Push-to-Connect	Connection 2 Type	Male NPTF
Connection 1 Size	5/16"	Connection 2 Size	1/8"
Configuration	Tube to Pipe	Product Style	Connector

Customers who bought this item also bought

Brass Inverted Flare Fittings - 46IFHD-5-2

Parker's economical inverted flare fittings offer a metal-to-metal seal that is internal to the fitting for tighter tube bends. Meets functional requirements of SAE J512

$7.84

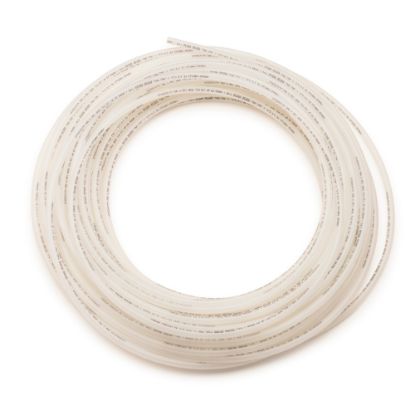

PE Tubing - E-53-0500
