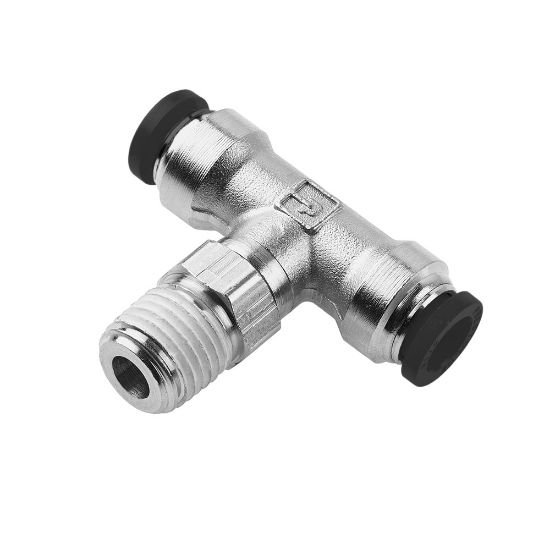

Push-to-Connect Nickel Plated Instant Fittings - Prestolok PLP Metal - W172PLP-8-6

Parker's Prestolok PLP push-to-connect fittings offer improved throughput, increased efficiency, smaller footprints, faster assembly and leak-reducing innovation.

Availability:	Backordered
Partner Available:	209 in stock

SKU: W172PLP-8-6

$18.33

Products specifications

Attribute name	Attribute value
Division	Fluid System Connectors Division	Brand	Parker
Seal Material	Nitrile	Vacuum Pressure Rating	28 Inch-Hg
Industry	Industrial Manufacturing Equipment	For Fluid Type	Air
Hex Size	11/16 inch	Technology	Pneumatics
Gripping Ring Material	STAINLESS STEEL	Body Material	Brass, Nickel-plated
Specifications Met	UL 94 V-0	Maximum Operating Temperature	200 °F
Materials of Construction	PVDF (Button)	Division	Fluid System Connectors Division
Maximum Operating Pressure	20.6 bar	Tube Material	Nylon
Region of Origin	United States	Minimum Operating Temperature	-17.7 °C
Application	Air Lines	Dimensional Weight	0.2179 lb
Connection 2 Size	1/2"	Connection 1 Size	1/2"
Connection 1 Type	Push-to-Connect	Connection 3 Size	3/8"
Connection 2 Type	Push-to-Connect	Configuration	Tube to Pipe
Shape	Branch Tee - Swivel	Connection 3 Type	Male NPTF
