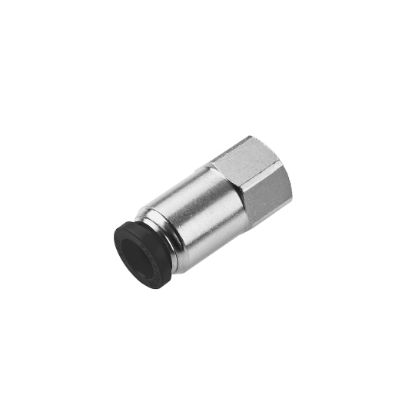

Push-to-Connect Nickel Plated Instant Fittings - Prestolok PLP Metal - W172PLP-5/32-2

Parker's Prestolok PLP push-to-connect fittings offer improved throughput, increased efficiency, smaller footprints, faster assembly and leak-reducing innovation.

Availability:	2 in stock
Partner Available:	101 in stock

SKU: W172PLP-5/32-2

$11.99

Products specifications

Attribute name	Attribute value
Division	Fluid System Connectors Division	Brand	Parker
Industry	Material Handling	Seal Material	Nitrile
Vacuum Pressure Rating	28 Inch-Hg	For Fluid Type	Inert Gases
Hex Size	7/16 inch	Technology	Fluid & Gas Handling
Gripping Ring Material	STAINLESS STEEL	Body Material	Brass, Nickel-plated
Specifications Met	UL 94 V-0	Maximum Operating Temperature	200 °F
Materials of Construction	PVDF (Button)	Division	Fluid System Connectors Division
Maximum Operating Pressure	20.6 bar	Region of Origin	United States
Minimum Operating Temperature	-17.7 °C	Application	Air Lines
Tube Material	Rigid Nylon
Connection 1 Type	Push-to-Connect	Connection 3 Size	1/8"
Connection 1 Size	5/32"	Connection 2 Size	5/32"
Connection 2 Type	Push-to-Connect	Configuration	Tube to Pipe
Shape	Branch Tee - Swivel	Connection 3 Type	Male NPTF
