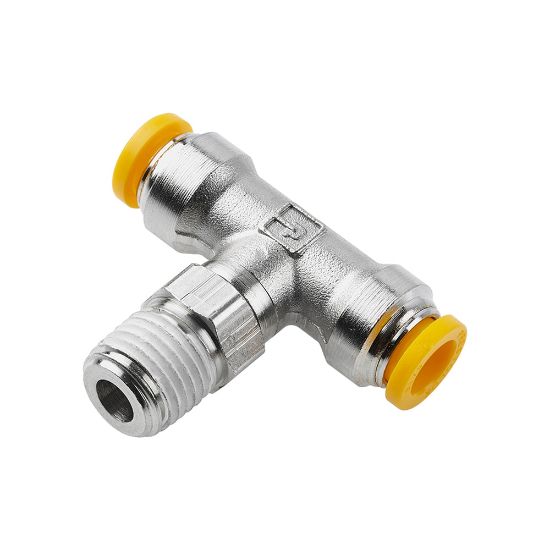

Push-to-Connect Nickel Plated Instant Fittings - Prestolok PLP Metal - W172PLP-12M-8R

Name: Push-to-Connect Nickel Plated Instant Fittings - Prestolok PLP Metal - W172PLP-12M-8R
SKU: W172PLP-12M-8R
Availability: OutOfStock

Parker's Prestolok PLP push-to-connect fittings offer improved throughput, increased efficiency, smaller footprints, faster assembly and leak-reducing innovation.

Availability:

Backordered

SKU: W172PLP-12M-8R

Qty:

Products specifications

Attribute name	Attribute value
Division	Fluid System Connectors Division	Brand	Parker
Seal Material	Nitrile	Vacuum Pressure Rating	28 Inch-Hg
Industry	Industrial Manufacturing Equipment	For Fluid Type	Inert Gases
Technology	Fluid & Gas Handling	Gripping Ring Material	STAINLESS STEEL
Body Material	Brass, Nickel-plated	Maximum Operating Pressure	300 psi
Specifications Met	UL 94 V-0	Maximum Operating Temperature	200 °F
Materials of Construction	PVDF (Button)	Division	Fluid System Connectors Division
Region of Origin	United States	Minimum Operating Temperature	-17.7 °C
Application	Oil Lines	Tube Material	Rigid Nylon
Hex Size	7/8 inch
Connection 2 Size	12 mm	Connection 1 Size	12 mm
Connection 1 Type	Push-to-Connect	Connection 3 Size	1/2"
Connection 2 Type	Push-to-Connect	Configuration	Tube to Pipe
Shape	Branch Tee - Swivel	Connection 3 Type	Male BSPT
