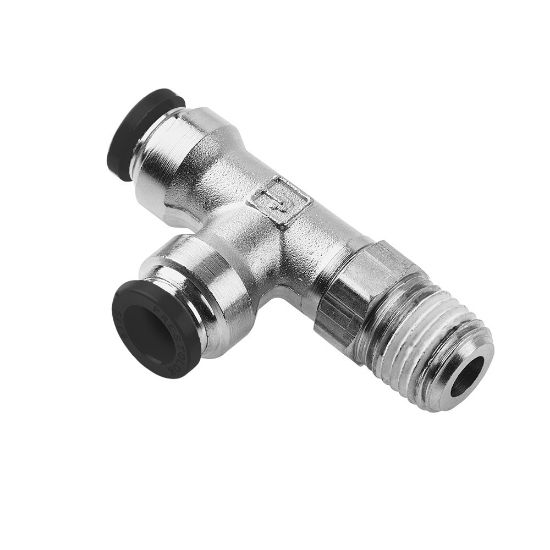

Push-to-Connect Nickel Plated Instant Fittings - Prestolok PLP Metal - W171PLP-8-6

Parker's Prestolok PLP push-to-connect fittings offer improved throughput, increased efficiency, smaller footprints, faster assembly and leak-reducing innovation.

Availability:	Backordered
Partner Available:	106 in stock

SKU: W171PLP-8-6

$26.13

Products specifications

Attribute name	Attribute value
Division	Fluid System Connectors Division	Brand	Parker
Seal Material	Nitrile	Vacuum Pressure Rating	28 Inch-Hg
For Fluid Type	Air	Hex Size	11/16 inch
Technology	Fluid & Gas Handling	Gripping Ring Material	STAINLESS STEEL
Body Material	Brass, Nickel-plated	Application	Inert Gases
Specifications Met	UL 94 V-0	Industry	Semiconductor
Materials of Construction	PVDF (Button)	Division	Fluid System Connectors Division
Maximum Operating Pressure	20.6 bar	Tube Material	Nylon
Region of Origin	United States	Maximum Operating Temperature	93.3 °C
Minimum Operating Temperature	-17.7 °C
Connection 2 Size	3/8"	Connection 1 Size	1/2"
Connection 1 Type	Push-to-Connect	Connection 3 Size	1/2"
Connection 3 Type	Push-to-Connect	Configuration	Tube to Pipe
Connection 2 Type	Male NPTF	Shape	Run Tee - Swivel
