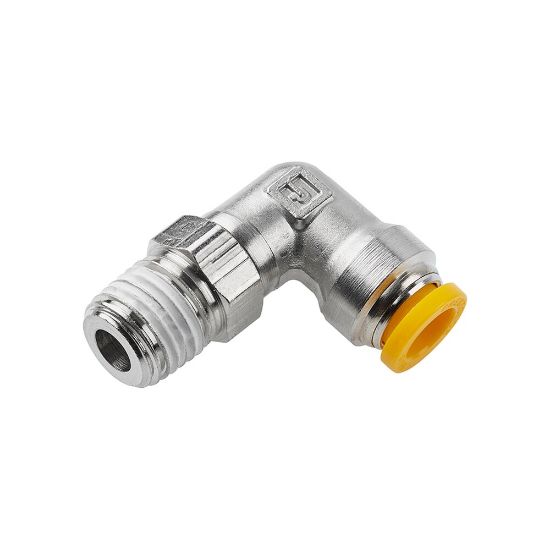

Push-to-Connect Nickel Plated Instant Fittings - Prestolok PLP Metal - W169PLP-10M-6R

Name: Push-to-Connect Nickel Plated Instant Fittings - Prestolok PLP Metal - W169PLP-10M-6R
SKU: W169PLP-10M-6R
Availability: OutOfStock

Parker's Prestolok PLP push-to-connect fittings offer improved throughput, increased efficiency, smaller footprints, faster assembly and leak-reducing innovation.

Availability:

Backordered

SKU: W169PLP-10M-6R

Qty:

Products specifications

Attribute name	Attribute value
Division	Fluid System Connectors Division	Brand	Parker
Industry	Material Handling	Seal Material	Nitrile
Vacuum Pressure Rating	28 Inch-Hg	For Fluid Type	Air
Hex Size	11/16 inch	Technology	Fluid & Gas Handling
Gripping Ring Material	STAINLESS STEEL	Minimum Operating Temperature	0 °F
Body Material	Brass, Nickel-plated	Specifications Met	UL 94 V-0
Maximum Operating Temperature	200 °F	Materials of Construction	PVDF (Button)
Division	Fluid System Connectors Division	Maximum Operating Pressure	20.6 bar
Tube Material	Polypropylene	Region of Origin	United States
Application	Air Lines
Connection 2 Size	3/8"	Connection 1 Size	10 mm
Connection 1 Type	Push-to-Connect	Configuration	Tube to Pipe
Connection 2 Type	Male BSPT	Shape	Elbow 90° - Swivel
