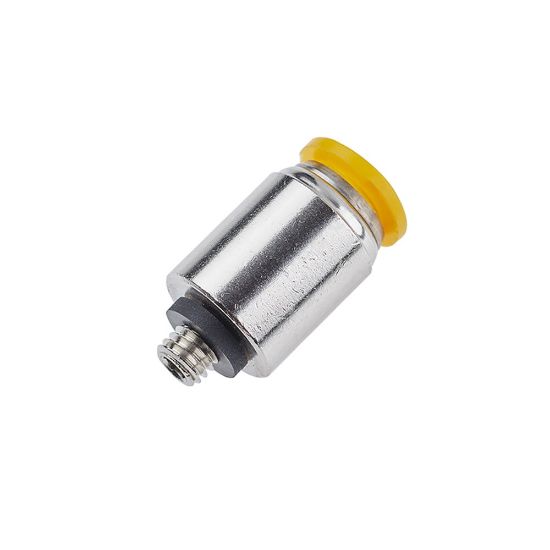

Push-to-Connect Nickel Plated Instant Fittings - Prestolok PLP Metal - 68PLPR-4M-2G

Name: Push-to-Connect Nickel Plated Instant Fittings - Prestolok PLP Metal - 68PLPR-4M-2G
SKU: 68PLPR-4M-2G
Availability: OutOfStock

Parker's Prestolok PLP push-to-connect fittings offer improved throughput, increased efficiency, smaller footprints, faster assembly and leak-reducing innovation.

Availability:

Backordered

SKU: 68PLPR-4M-2G

Qty:

Products specifications

Attribute name	Attribute value
Specifications Met	UL 94 V-0	Region of Origin	United States
Technology	Pneumatics	Body Material	Brass, Nickel-plated
Minimum Operating Temperature	-17.7 °C	Division	Fluid System Connectors Division
Brand	Parker	Maximum Operating Pressure	300 psi
For Fluid Type	Oil	Vacuum Pressure Rating	28 Inch-Hg
Hex Size	3.07 inch	Industry	Industrial Manufacturing Equipment
Application	Vacuum	Division	Fluid System Connectors Division
Materials of Construction	PVDF (Button)	Seal Material	Nitrile
Tube Material	Nylon	Gripping Ring Material	STAINLESS STEEL
Maximum Operating Temperature	93.3 °C
Connection 2 Size	1/8"	Connection 1 Size	4 mm
Product Style	Round Body Connector	Connection 1 Type	Push-to-Connect
Connection 2 Type	Male BSPP	Configuration	Tube to Pipe
