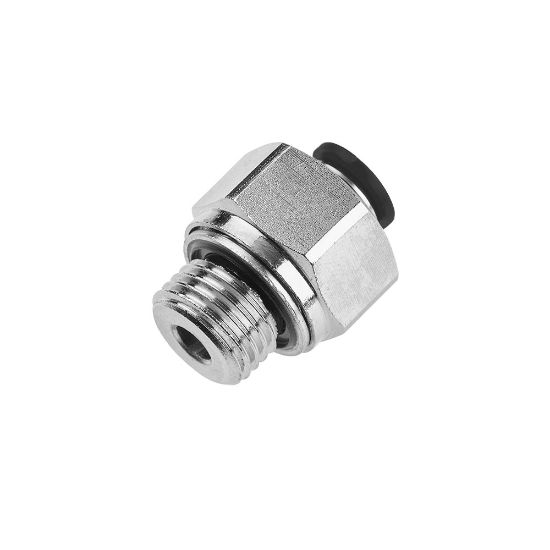

Push-to-Connect Nickel Plated Instant Fittings - Prestolok PLP Metal - 68PLP-5/32-0

Parker's Prestolok PLP push-to-connect fittings offer improved throughput, increased efficiency, smaller footprints, faster assembly and leak-reducing innovation.

Availability:	14 in stock
Partner Available:	728 in stock

SKU: 68PLP-5/32-0

$4.87

Products specifications

Attribute name	Attribute value
Division	Fluid System Connectors Division	Hex Size	3/8 inch
Gripping Ring Material	STAINLESS STEEL	Application	Packaging
Materials of Construction	PVDF (Button)	Seal Material	Nitrile
Maximum Operating Temperature	200 °F	Dimensional Weight	0.2179 lb
Tube Material	Polypropylene	Maximum Operating Pressure	20.6 bar
Specifications Met	UL 94 V-0	Region of Origin	United States
Body Material	Brass, Nickel-plated	For Fluid Type	Inert Gases
Industry	Automotive	Division	Fluid System Connectors Division
Brand	Parker	Minimum Operating Temperature	0 °F
Vacuum Pressure Rating	28 Inch-Hg	Technology	Fluid & Gas Handling
Configuration	Tube to Pipe	Product Style	Connector
Connection 1 Size	5/32"	Connection 2 Type	Male NPTF
Connection 2 Size	10-32	Connection 1 Type	Push-to-Connect
