Push-to-Connect Nickel Plated Instant Fittings - Prestolok PLP Metal - 68PLP-4-0

Parker's Prestolok PLP push-to-connect fittings offer improved throughput, increased efficiency, smaller footprints, faster assembly and leak-reducing innovation.

Availability:	6 in stock
Partner Available:	1324 in stock

SKU: 68PLP-4-0

$7.49

Products specifications

Attribute name	Attribute value
Seal Material	Nitrile	Industry	Industrial Manufacturing Equipment
Division	Fluid System Connectors Division	Materials of Construction	PVDF (Button)
Maximum Operating Pressure	300 psi	Gripping Ring Material	STAINLESS STEEL
Specifications Met	UL 94 V-0	Region of Origin	United States
Application	Inert Gases	Dimensional Weight	0.2179 lb
Body Material	Brass, Nickel-plated	Brand	Parker
For Fluid Type	Air	Division	Fluid System Connectors Division
Tube Material	Polyurethane 90 to 95 Durometer Shore A	Maximum Operating Temperature	200 °F
Hex Size	1/2 inch	Vacuum Pressure Rating	28 Inch-Hg
Technology	Fluid & Gas Handling	Minimum Operating Temperature	-17.7 °C
Product Style	Connector	Configuration	Tube to Pipe
Connection 2 Type	Male NPTF	Connection 1 Size	1/4"
Connection 2 Size	10-32	Connection 1 Type	Push-to-Connect

Customers who bought this item also bought

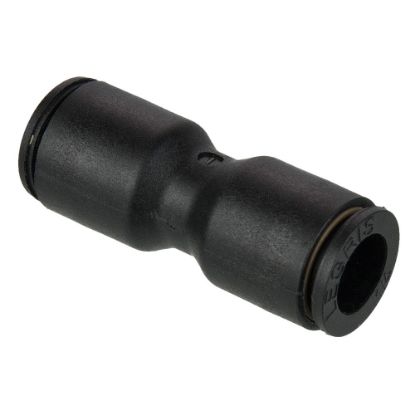

Composite Push-to-Connect Fittings - PLP Composite - 32PLP-4

Parker Prestolok composite push-to-connect fittings provide a simple way of connecting tubes to a fitting. Prestolok composite push in fittings reduce assembly time by eliminating the use of a sleeve and tightening of a nut.

$3.85
