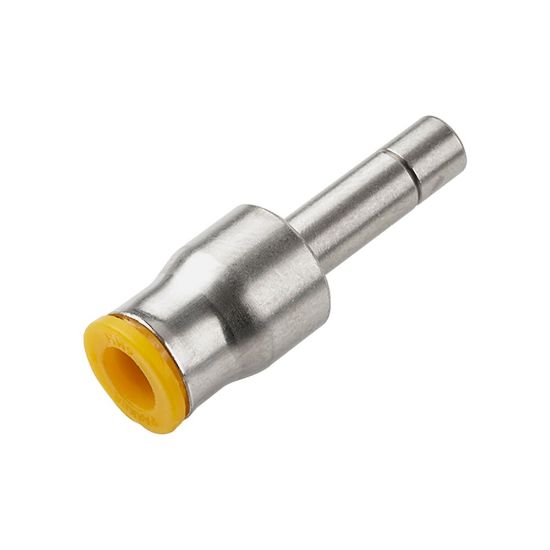

Push-to-Connect Nickel Plated Instant Fittings - Prestolok PLP Metal - 67PLP-6M-12M

Name: Push-to-Connect Nickel Plated Instant Fittings - Prestolok PLP Metal - 67PLP-6M-12M
SKU: 67PLP-6M-12M
Availability: OutOfStock

Parker's Prestolok PLP push-to-connect fittings offer improved throughput, increased efficiency, smaller footprints, faster assembly and leak-reducing innovation.

Availability:

Backordered

SKU: 67PLP-6M-12M

Qty:

Products specifications

Attribute name	Attribute value
Minimum Operating Temperature	0 °F	Vacuum Pressure Rating	28 Inch-Hg
Brand	Parker	Division	Fluid System Connectors Division
Tube Material	Polyurethane 90 to 95 Durometer Shore A	Gripping Ring Material	STAINLESS STEEL
Materials of Construction	PVDF (Button)	Seal Material	Nitrile
Body Material	Brass, Nickel-plated	Hex Size	n/a
Industry	Material Handling	For Fluid Type	Inert Gases
Division	Fluid System Connectors Division	Application	Automotive
Maximum Operating Temperature	200 °F	Region of Origin	United States
Technology	Pneumatics	Specifications Met	UL 94 V-0
Maximum Operating Pressure	20.6 bar
Connection 1 Type	Push-to-Connect	Connection 2 Size	12 mm
Connection 1 Size	6 mm	Connection 2 Type	Push-to-Connect
Product Style	Tube Reducer	Configuration	Tube to Tube
