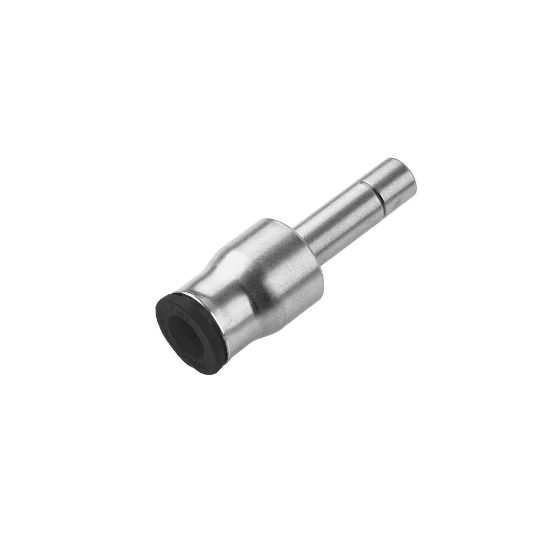

Push-to-Connect Nickel Plated Instant Fittings - Prestolok PLP Metal - 67PLP-4-6

Parker's Prestolok PLP push-to-connect fittings offer improved throughput, increased efficiency, smaller footprints, faster assembly and leak-reducing innovation.

Availability:	Backordered
Partner Available:	8 in stock

SKU: 67PLP-4-6

$10.08

Products specifications

Attribute name	Attribute value
Maximum Operating Temperature	200 °F	Technology	Pneumatics
Specifications Met	UL 94 V-0	Tube Material	Polyethylene
Region of Origin	United States	Body Material	Brass, Nickel-plated
Division	Fluid System Connectors Division	Minimum Operating Temperature	-17.7 °C
Brand	Parker	Application	Oil Lines
Vacuum Pressure Rating	28 Inch-Hg	Division	Fluid System Connectors Division
Industry	Industrial Manufacturing Equipment	Maximum Operating Pressure	300 psi
Gripping Ring Material	STAINLESS STEEL	For Fluid Type	Oil
Materials of Construction	PVDF (Button)	Seal Material	Nitrile
Connection 2 Size	1/4"	Product Style	Tube Reducer
Configuration	Tube to Tube	Connection 2 Type	Push-to-Connect
Connection 1 Type	Push-to-Connect	Connection 1 Size	3/8"
