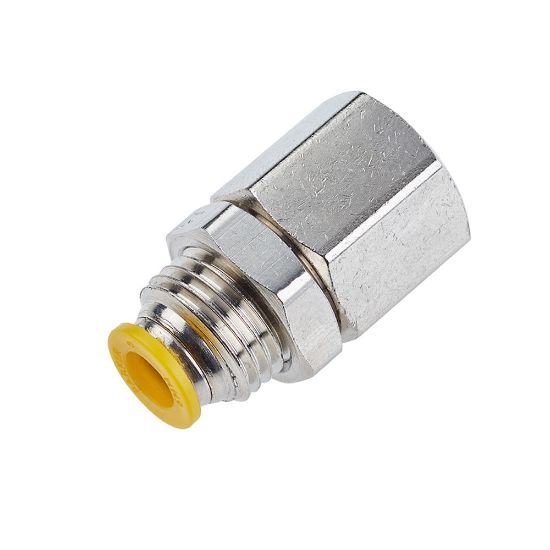

Push-to-Connect Nickel Plated Instant Fittings - Prestolok PLP Metal - 66PLPBH-6M-4G

Name: Push-to-Connect Nickel Plated Instant Fittings - Prestolok PLP Metal - 66PLPBH-6M-4G
SKU: 66PLPBH-6M-4G
Availability: OutOfStock

Parker's Prestolok PLP push-to-connect fittings offer improved throughput, increased efficiency, smaller footprints, faster assembly and leak-reducing innovation.

Availability:

Backordered

SKU: 66PLPBH-6M-4G

Qty:

Products specifications

Attribute name	Attribute value
Maximum Operating Temperature	200 °F	Brand	Parker
Technology	Pneumatics	Tube Material	Polypropylene
Specifications Met	UL 94 V-0	Maximum Operating Pressure	20.6 bar
Region of Origin	United States	Vacuum Pressure Rating	28 Inch-Hg
Minimum Operating Temperature	-17.7 °C	Division	Fluid System Connectors Division
Gripping Ring Material	STAINLESS STEEL	For Fluid Type	Oil
Seal Material	Nitrile	Materials of Construction	PVDF (Button)
Hex Size	11/16 inch	Body Material	Brass, Nickel-plated
Industry	Automotive	Division	Fluid System Connectors Division
Application	Air Lines
Connection 2 Type	Female BSPP	Connection 1 Type	Push-to-Connect
Connection 2 Size	1/4"	Product Style	Bulkhead
Connection 1 Size	6 mm	Configuration	Tube to Pipe

California Residents: Prop-65 Warning

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety
