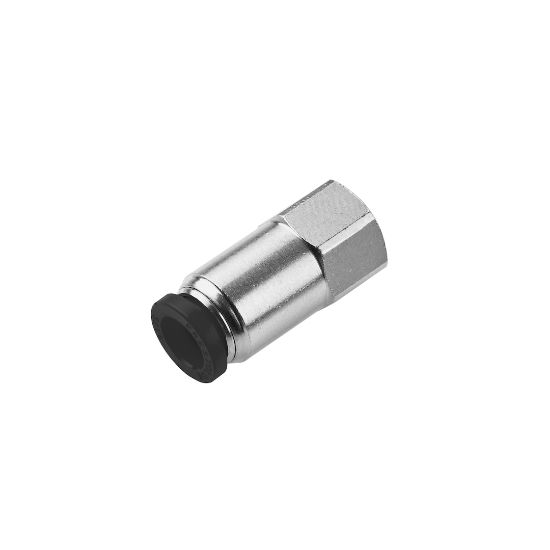

Push-to-Connect Nickel Plated Instant Fittings - Prestolok PLP Metal - 66PLP-5-2

Parker's Prestolok PLP push-to-connect fittings offer improved throughput, increased efficiency, smaller footprints, faster assembly and leak-reducing innovation.

Availability:	Backordered
Partner Available:	75 in stock

SKU: 66PLP-5-2

$11.77

Products specifications

Attribute name	Attribute value
Division	Fluid System Connectors Division	Industry	Semiconductor
Application	Automotive	Maximum Operating Temperature	200 °F
Specifications Met	UL 94 V-0	Region of Origin	United States
Body Material	Brass, Nickel-plated	Technology	Fluid & Gas Handling
Vacuum Pressure Rating	28 Inch-Hg	Tube Material	Rigid Nylon
Brand	Parker	Minimum Operating Temperature	-17.7 °C
Division	Fluid System Connectors Division	For Fluid Type	Oil
Materials of Construction	PVDF (Button)	Hex Size	9/16 inch
Seal Material	Nitrile	Maximum Operating Pressure	300 psi
Gripping Ring Material	STAINLESS STEEL
Product Style	Connector	Connection 2 Size	1/8"
Connection 1 Size	5/16"	Connection 1 Type	Push-to-Connect
Configuration	Tube to Female Pipe	Connection 2 Type	Female NPTF
