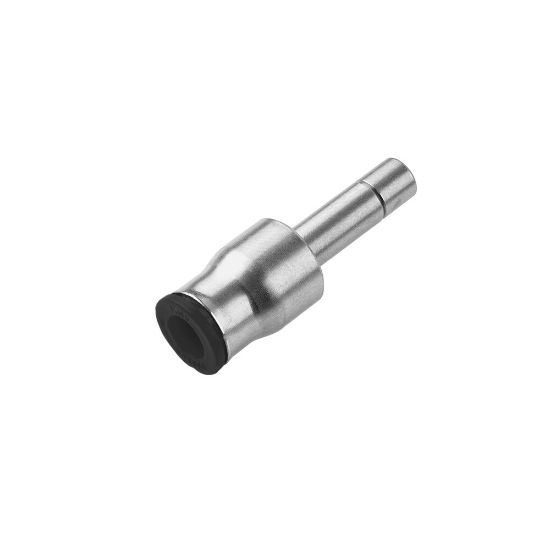

Push-to-Connect Nickel Plated Instant Fittings - Prestolok PLP Metal - 62PLPSP-6-4

Name: Push-to-Connect Nickel Plated Instant Fittings - Prestolok PLP Metal - 62PLPSP-6-4
SKU: 62PLPSP-6-4
Availability: OutOfStock

Parker's Prestolok PLP push-to-connect fittings offer improved throughput, increased efficiency, smaller footprints, faster assembly and leak-reducing innovation.

Availability:

Backordered

SKU: 62PLPSP-6-4

Qty:

Products specifications

Attribute name	Attribute value
Division	Fluid System Connectors Division	Brand	Parker
Seal Material	Nitrile	Vacuum Pressure Rating	28 Inch-Hg
Industry	Industrial Manufacturing Equipment	For Fluid Type	Oil
Technology	Fluid & Gas Handling	Gripping Ring Material	STAINLESS STEEL
Body Material	Brass, Nickel-plated	Maximum Operating Pressure	300 psi
Specifications Met	UL 94 V-0	Materials of Construction	PVDF (Button)
Division	Fluid System Connectors Division	Region of Origin	United States
Maximum Operating Temperature	93.3 °C	Minimum Operating Temperature	-17.7 °C
Application	Vacuum	Tube Material	Polyurethane 90 to 95 Durometer Shore A
Connection 2 Size	3/8"	Connection 1 Size	1/4"
Configuration	Tube to Tube	Connection 1 Type	Push-to-Connect
Connection 2 Type	Push-to-Connect	Product Style	Tube Expander
