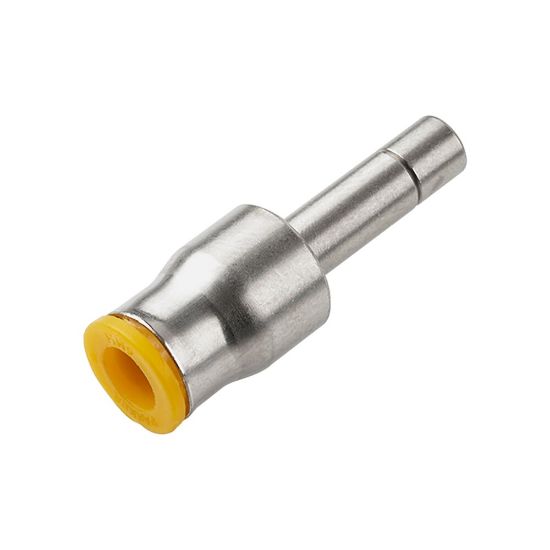

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Push-to-Connect Nickel Plated Instant Fittings - Prestolok PLP Metal - 62PLPSP-12M-10M

Name: Push-to-Connect Nickel Plated Instant Fittings - Prestolok PLP Metal - 62PLPSP-12M-10M
SKU: 62PLPSP-12M-10M
Availability: OutOfStock

Parker's Prestolok PLP push-to-connect fittings offer improved throughput, increased efficiency, smaller footprints, faster assembly and leak-reducing innovation.

Availability:

Backordered

SKU: 62PLPSP-12M-10M

Qty:

Products specifications

Attribute name	Attribute value
Division	Fluid System Connectors Division	Brand	Parker
Seal Material	Nitrile	Hex Size	n/a
Vacuum Pressure Rating	28 Inch-Hg	For Fluid Type	Inert Gases
Technology	Pneumatics	Gripping Ring Material	STAINLESS STEEL
Body Material	Brass, Nickel-plated	Maximum Operating Pressure	300 psi
Specifications Met	UL 94 V-0	Materials of Construction	PVDF (Button)
Division	Fluid System Connectors Division	Industry	Automotive
Region of Origin	United States	Maximum Operating Temperature	93.3 °C
Minimum Operating Temperature	-17.7 °C	Application	Oil Lines
Tube Material	Polyethylene
Connection 2 Size	10 mm	Connection 1 Size	12 mm
Configuration	Tube to Tube	Connection 1 Type	Push-to-Connect
Connection 2 Type	Push-to-Connect	Product Style	Tube Expander
