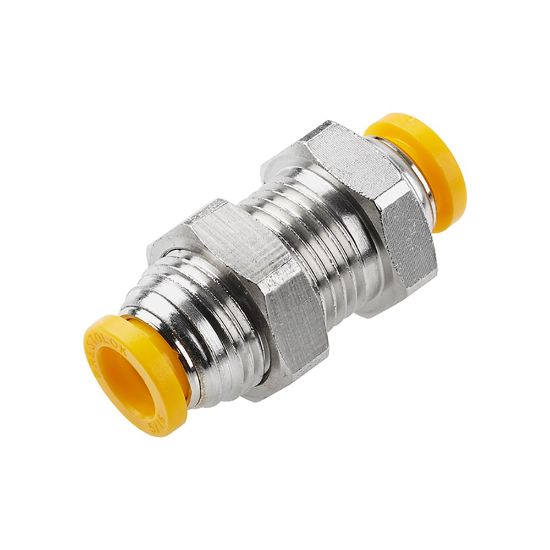

Push-to-Connect Nickel Plated Instant Fittings - Prestolok PLP Metal - 62PLPBH-8M

Name: Push-to-Connect Nickel Plated Instant Fittings - Prestolok PLP Metal - 62PLPBH-8M
SKU: 62PLPBH-8M
Availability: OutOfStock

Parker's Prestolok PLP push-to-connect fittings offer improved throughput, increased efficiency, smaller footprints, faster assembly and leak-reducing innovation.

Availability:

Backordered

SKU: 62PLPBH-8M

Qty:

Products specifications

Attribute name	Attribute value
Division	Fluid System Connectors Division	Brand	Parker
Seal Material	Nitrile	Vacuum Pressure Rating	28 Inch-Hg
For Fluid Type	Inert Gases	Technology	Fluid & Gas Handling
Gripping Ring Material	STAINLESS STEEL	Body Material	Brass, Nickel-plated
Maximum Operating Pressure	300 psi	Application	Inert Gases
Specifications Met	UL 94 V-0	Industry	Semiconductor
Maximum Operating Temperature	200 °F	Materials of Construction	PVDF (Button)
Division	Fluid System Connectors Division	Region of Origin	United States
Minimum Operating Temperature	-17.7 °C	Hex Size	3/4 inch
Tube Material	Polyurethane 90 to 95 Durometer Shore A
Connection 2 Size	8 mm	Connection 1 Size	8 mm
Configuration	Tube to Tube	Connection 1 Type	Push-to-Connect
Connection 2 Type	Push-to-Connect	Shape	Union - Bulkhead
