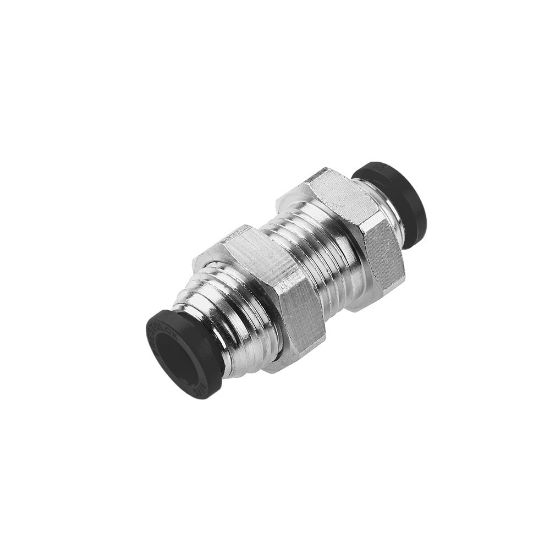

Push-to-Connect Nickel Plated Instant Fittings - Prestolok PLP Metal - 62PLPBH-5/32

Parker's Prestolok PLP push-to-connect fittings offer improved throughput, increased efficiency, smaller footprints, faster assembly and leak-reducing innovation.

Availability:	1 in stock
Partner Available:	1294 in stock

SKU: 62PLPBH-5/32

$10.86

Products specifications

Attribute name	Attribute value
Division	Fluid System Connectors Division	Brand	Parker
Industry	Material Handling	Seal Material	Nitrile
Vacuum Pressure Rating	28 Inch-Hg	For Fluid Type	Air
Hex Size	9/16 inch	Technology	Pneumatics
Gripping Ring Material	STAINLESS STEEL	Minimum Operating Temperature	0 °F
Body Material	Brass, Nickel-plated	Maximum Operating Pressure	300 psi
Specifications Met	UL 94 V-0	Materials of Construction	PVDF (Button)
Division	Fluid System Connectors Division	Region of Origin	United States
Maximum Operating Temperature	93.3 °C	Application	Oil Lines
Tube Material	Rigid Nylon	Dimensional Weight	0.2179 lb
Configuration	Tube to Tube	Connection 1 Type	Push-to-Connect
Connection 1 Size	5/32"	Connection 2 Size	5/32"
Connection 2 Type	Push-to-Connect	Shape	Union - Bulkhead
