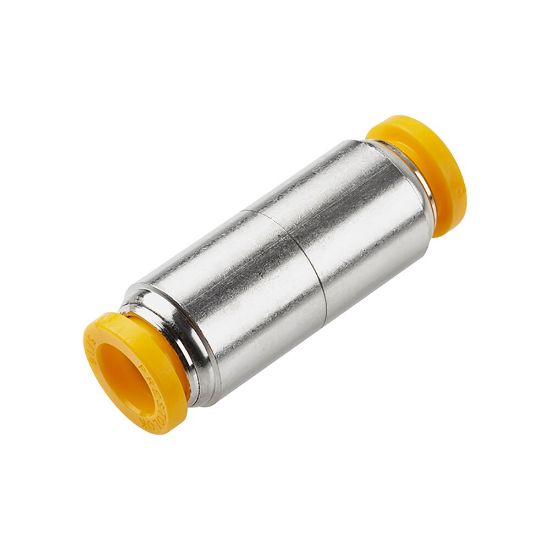

Push-to-Connect Nickel Plated Instant Fittings - Prestolok PLP Metal - 62PLP-10M-12M

Name: Push-to-Connect Nickel Plated Instant Fittings - Prestolok PLP Metal - 62PLP-10M-12M
SKU: 62PLP-10M-12M
Availability: OutOfStock

Parker's Prestolok PLP push-to-connect fittings offer improved throughput, increased efficiency, smaller footprints, faster assembly and leak-reducing innovation.

Availability:

Backordered

SKU: 62PLP-10M-12M

Qty:

Products specifications

Attribute name	Attribute value
Division	Fluid System Connectors Division	Brand	Parker
Seal Material	Nitrile	Hex Size	n/a
Vacuum Pressure Rating	28 Inch-Hg	For Fluid Type	Oil
Technology	Pneumatics	Gripping Ring Material	STAINLESS STEEL
Body Material	Brass, Nickel-plated	Specifications Met	UL 94 V-0
Application	Automotive	Maximum Operating Temperature	200 °F
Materials of Construction	PVDF (Button)	Division	Fluid System Connectors Division
Industry	Automotive	Maximum Operating Pressure	20.6 bar
Region of Origin	United States	Minimum Operating Temperature	-17.7 °C
Tube Material	Rigid Nylon
Connection 2 Size	10 mm	Connection 1 Size	12 mm
Configuration	Tube to Tube	Connection 1 Type	Push-to-Connect
Connection 2 Type	Push-to-Connect	Shape	Union - Unequal
