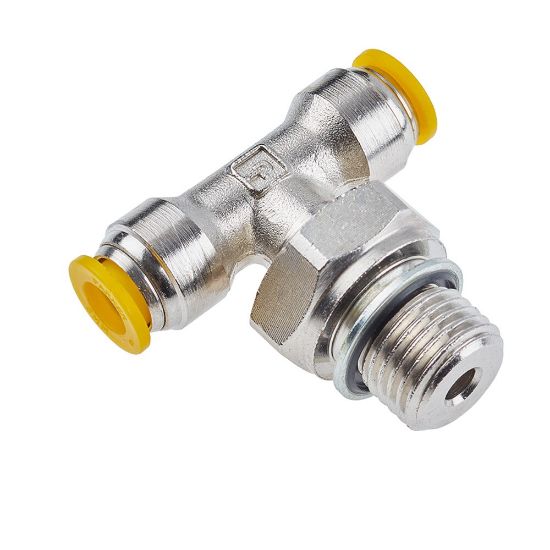

Push-to-Connect Nickel Plated Instant Fittings - Prestolok PLP Metal - 172PLP-12M-4G

Name: Push-to-Connect Nickel Plated Instant Fittings - Prestolok PLP Metal - 172PLP-12M-4G
SKU: 172PLP-12M-4G
Availability: OutOfStock

Parker's Prestolok PLP push-to-connect fittings offer improved throughput, increased efficiency, smaller footprints, faster assembly and leak-reducing innovation.

Availability:

Backordered

SKU: 172PLP-12M-4G

Qty:

Products specifications

Attribute name	Attribute value
Division	Fluid System Connectors Division	Application	Packaging
Brand	Parker	Seal Material	Nitrile
Vacuum Pressure Rating	28 Inch-Hg	Industry	Industrial Manufacturing Equipment
For Fluid Type	Air	Technology	Fluid & Gas Handling
Gripping Ring Material	STAINLESS STEEL	Body Material	Brass, Nickel-plated
Specifications Met	UL 94 V-0	Maximum Operating Temperature	200 °F
Materials of Construction	PVDF (Button)	Division	Fluid System Connectors Division
Maximum Operating Pressure	20.6 bar	Region of Origin	United States
Minimum Operating Temperature	-17.7 °C	Tube Material	Polyethylene
Hex Size	3/4 inch
Connection 2 Size	12 mm	Connection 1 Size	12 mm
Connection 1 Type	Push-to-Connect	Connection 3 Size	1/4"
Connection 2 Type	Push-to-Connect	Configuration	Tube to Pipe
Shape	Branch Tee - Swivel	Connection 3 Type	Male BSPP
