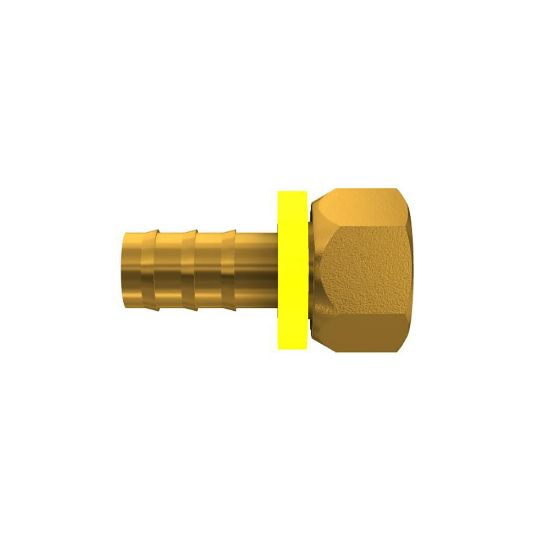

Push On Field Attachable Hydraulic Hose Fitting - 82 Series - Europe - 3FF82-14-8B

Name: Push On Field Attachable Hydraulic Hose Fitting - 82 Series - Europe - 3FF82-14-8B
SKU: 3FF82-14-8B
Availability: OutOfStock

Configure hose assemblies quickly and easily in the field without special tools with Parker’s 82 series one-piece, push-on field-attachable hydraulic fittings.

Availability:

Backordered

SKU: 3FF82-14-8B

Qty:

Products specifications

Attribute name	Attribute value
Body Material	BRASS	Brand	Parker
Shape	Straight	Industry	Industrial Manufacturing Equipment
Technology	Fluid & Gas Handling	Connection 1 Size	1/2 inch Hose I.D.
Division	Polymer Hose Division Europe	Connection 1 Type	Hose
Maximum Operating Pressure	n/a	Division	Polymer Hose Division Europe
Connection 2 Type	Female	Hex Size	22 mm (see drawing legend W)
Fitting Length	38 mm (see drawing legend A)	Product Type	Barbed Fittings\|Push-Lok Hose Fittings
Application	Injection Moulding Machines	For Fluid Type	Coolants (Glycol)
Connection Length	12 mm (see drawing legend B)	Connection 2 Size	M18x1.0 mm Thread
Shape	Straight	Body Material	BRASS
Hose I.D. (size)	-8	Hex Type	Metric
Port Connection	14 mm	Connection 2 Type	Female Metru-Lok - Swivel

Product resources

Compliance, Certifications & Safety

Literature and Reference Materials

Parker Hydraulic Hoses, Fittings and Equipment Catalogue CAT_4400_UK--(English)
