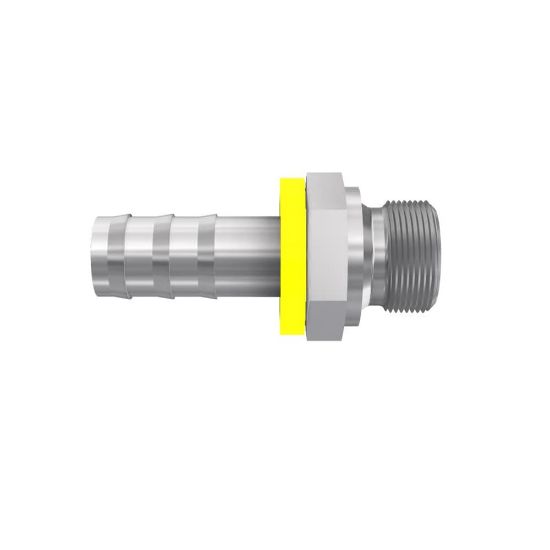

Push On Field Attachable Hydraulic Hose Fitting - 82 Series - Europe - 3D982-8-8C

Name: Push On Field Attachable Hydraulic Hose Fitting - 82 Series - Europe - 3D982-8-8C
SKU: 3D982-8-8C
Availability: OutOfStock

Configure hose assemblies quickly and easily in the field without special tools with Parker’s 82 series one-piece, push-on field-attachable hydraulic fittings.

Availability:

Backordered

SKU: 3D982-8-8C

Qty:

Products specifications

Attribute name	Attribute value
Brand	Parker	Shape	Straight
Body Material	Stainless Steel	Industry	Industrial Manufacturing Equipment
Technology	Fluid & Gas Handling	Connection 1 Size	-8 (Size)
Division	Polymer Hose Division Europe	Connection 1 Type	Hose
Division	Polymer Hose Division Europe	Hex Size	27 mm (see drawing legend H)
Fitting Length	53 mm (see drawing legend A)	For Fluid Type	Lubricants (Oils)
Connection 2 Size	1/2"-14 inch Thread	Connection Length	27 mm (see drawing legend B)
Port Type	AGR	Maximum Operating Pressure	43.0 MPa
Specifications Met	BS 5200	Product Type	Barbed Fittings\|Push-Lok Hose Fittings
Application	Injection Moulding Machines	Connection 2 Type	Rigid (60° Cone)
Shape	Straight	Body Material	Stainless Steel
Port Connection	1/2"	Hose I.D. (size)	-8
Hex Type	Metric	Connection 2 Type	Male BSP Parallel Pipe - Rigid (60° Cone)
