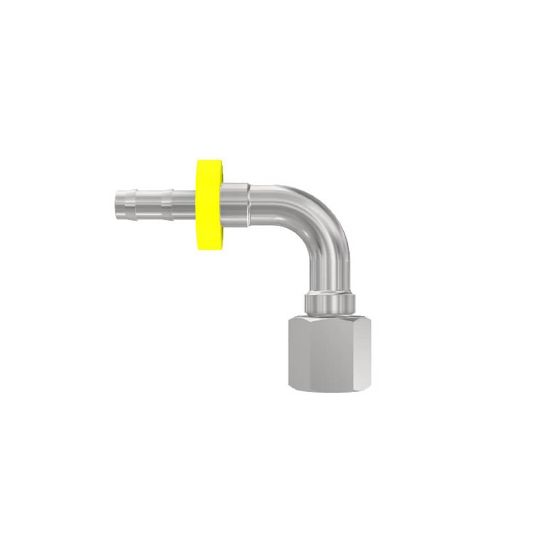

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Push On Field Attachable Hydraulic Hose Fitting - 82 Series - Europe - 3CF82-10-4

Name: Push On Field Attachable Hydraulic Hose Fitting - 82 Series - Europe - 3CF82-10-4
SKU: 3CF82-10-4
Availability: OutOfStock

Configure hose assemblies quickly and easily in the field without special tools with Parker’s 82 series one-piece, push-on field-attachable hydraulic fittings.

Availability:

Backordered

SKU: 3CF82-10-4

Qty:

Products specifications

Attribute name	Attribute value
Body Material	Steel	Brand	Parker
Industry	Industrial Manufacturing Equipment	Technology	Fluid & Gas Handling
Connection 1 Size	1/4 inch Hose I.D.	Division	Polymer Hose Division Europe
Connection 1 Type	Hose	Tube Outside Diameter	10 mm
Division	Polymer Hose Division Europe	Connection 2 Type	Female
Connection Length	23 mm (see drawing legend B)	Fitting Length	42 mm (see drawing legend A)
Connection 2 Size	M16x1.5 mm Thread	Hex Size	19 mm (see drawing legend W)
Shape	Elbow 90°	Drop Length	32 mm (see drawing legend E)
Port Type	DKOL	Specifications Met	ISO 12151-2-SWE-L
Maximum Operating Pressure	50.0 MPa	Product Type	Barbed Fittings\|Push-Lok Hose Fittings
Application	Transfer Lines	For Fluid Type	Coolants (Glycol)
Body Material	Steel	Hose I.D. (size)	-4
Hex Type	Metric	Shape	Elbow 90°
Port Connection	10 mm	Connection 2 Type	Female Metric L - Swivel (24° Cone with O-Ring)
