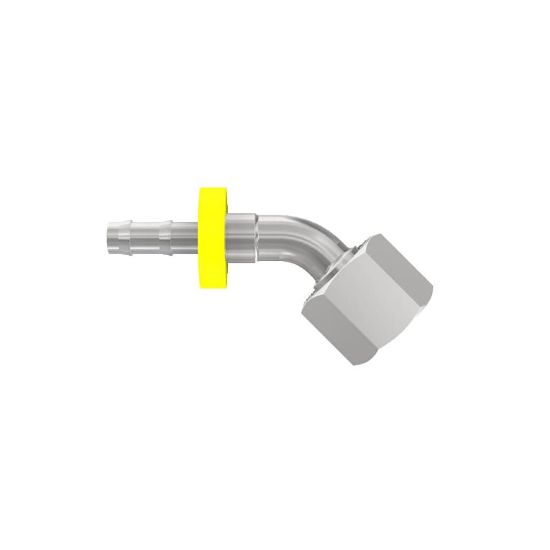

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Push On Field Attachable Hydraulic Hose Fitting - 82 Series - Europe - 3CE82-6-4

Name: Push On Field Attachable Hydraulic Hose Fitting - 82 Series - Europe - 3CE82-6-4
SKU: 3CE82-6-4
Availability: OutOfStock

Configure hose assemblies quickly and easily in the field without special tools with Parker’s 82 series one-piece, push-on field-attachable hydraulic fittings.

Availability:

Backordered

SKU: 3CE82-6-4

Qty:

Products specifications

Attribute name	Attribute value
Body Material	Steel	Brand	Parker
Application	Machine Tools	Industry	Industrial Manufacturing Equipment
Technology	Fluid & Gas Handling	Division	Polymer Hose Division Europe
Connection 1 Type	Hose	Division	Polymer Hose Division Europe
Connection Length	37 mm (see drawing legend B)	For Fluid Type	Air (General Industrial Air)
Tube Outside Diameter	6 mm	Connection 1 Size	-4 (Size)
Fitting Length	56 mm (see drawing legend A)	Maximum Operating Pressure	500 bar
Shape	Elbow 45°	Drop Length	21 mm (see drawing legend E)
Port Type	DKOL	Specifications Met	ISO 12151-2-SWE-L
Hex Size	14 mm (see drawing legend W)	Connection 2 Size	M12x1.5 mm Thread
Product Type	Barbed Fittings\|Push-Lok Hose Fittings	Connection 2 Type	Swivel (24° Cone with O-Ring)
Body Material	Steel	Hose I.D. (size)	-4
Shape	Elbow 45°	Hex Type	Metric
Port Connection	6 mm	Connection 2 Type	Female Metric L - Swivel (24° Cone with O-Ring)

Product resources

Compliance, Certifications & Safety

Literature and Reference Materials

Parker Hydraulic Hoses, Fittings and Equipment Catalogue CAT_4400_UK--(English)
