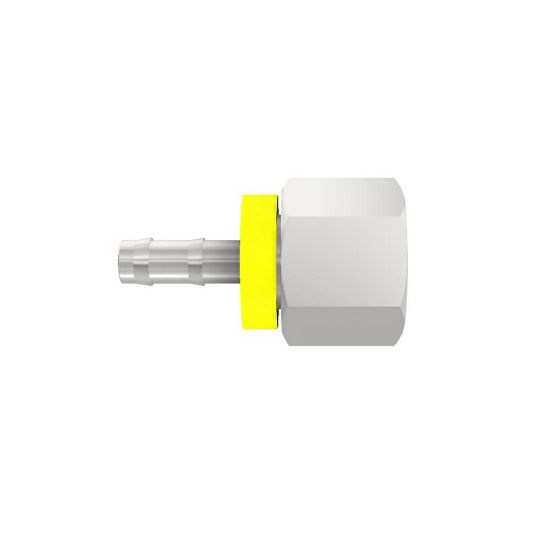

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Push On Field Attachable Hydraulic Hose Fitting - 82 Series - Europe - 3CA82-22-12C

Name: Push On Field Attachable Hydraulic Hose Fitting - 82 Series - Europe - 3CA82-22-12C
SKU: 3CA82-22-12C
Availability: OutOfStock

Configure hose assemblies quickly and easily in the field without special tools with Parker’s 82 series one-piece, push-on field-attachable hydraulic fittings.

Availability:

Backordered

SKU: 3CA82-22-12C

Qty:

Products specifications

Attribute name	Attribute value
Brand	Parker	Shape	Straight
Body Material	Stainless Steel	Industry	Industrial Manufacturing Equipment
Technology	Fluid & Gas Handling	Connection 1 Size	19.1 mm Hose I.D.
Division	Polymer Hose Division Europe	Connection 1 Type	Hose
Division	Polymer Hose Division Europe	Connection 2 Type	Female
Fitting Length	58 mm (see drawing legend A)	Connection Length	21 mm (see drawing legend B)
Connection 2 Size	M30x2.0 mm Thread	Hex Size	36 mm (see drawing legend W)
Port Type	DKOL	Specifications Met	ISO 12151-2-SWS-L
Tube Outside Diameter	22 mm	Product Type	Barbed Fittings\|Push-Lok Hose Fittings
Application	Paper Machines	For Fluid Type	Petroleum Hydraulic Fluids (Petroleum & Water-Glycol Base)
Maximum Operating Pressure	166 bar
Shape	Straight	Body Material	Stainless Steel
Hose I.D. (size)	-12	Hex Type	Metric
Port Connection	22 mm	Connection 2 Type	Female Metric L - Swivel (24° Cone with O-Ring)

Product resources

Compliance, Certifications & Safety

Literature and Reference Materials

Parker Hydraulic Hoses, Fittings and Equipment Catalogue CAT_4400_UK--(English)
