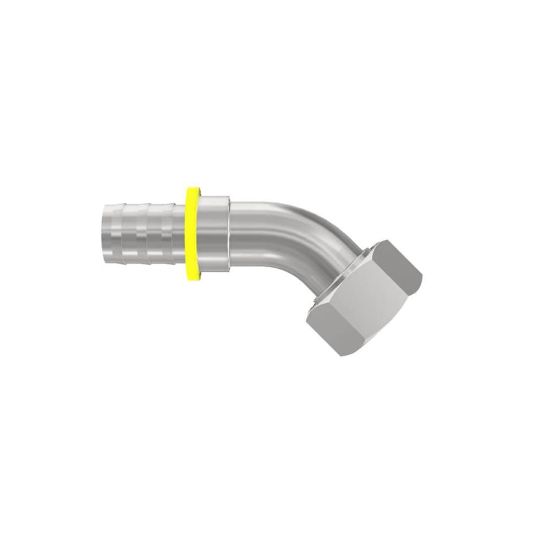

Push On Field Attachable Hydraulic Hose Fitting - 82 Series - Europe - 3C482-28-16

Name: Push On Field Attachable Hydraulic Hose Fitting - 82 Series - Europe - 3C482-28-16
SKU: 3C482-28-16
Availability: OutOfStock

Configure hose assemblies quickly and easily in the field without special tools with Parker’s 82 series one-piece, push-on field-attachable hydraulic fittings.

Availability:

Backordered

SKU: 3C482-28-16

Qty:

Products specifications

Attribute name	Attribute value
Body Material	Steel	Brand	Parker
Application	Machine Tools	Industry	Industrial Manufacturing Equipment
Technology	Fluid & Gas Handling	Connection 1 Size	-16 (Size)
Division	Polymer Hose Division Europe	Connection 1 Type	Hose
Division	Polymer Hose Division Europe	Fitting Length	110 mm (see drawing legend A)
Shape	Elbow 45°	Connection 2 Size	M36x2.0 mm Thread
Hex Size	41 mm (see drawing legend W)	Connection Length	73 mm (see drawing legend B)
Drop Length	31 mm (see drawing legend E)	Connection 2 Type	Metric L
Tube Outside Diameter	28 mm	Product Type	Barbed Fittings\|Push-Lok Hose Fittings
For Fluid Type	Petroleum Hydraulic Fluids (Petroleum & Water-Glycol Base)	Port Type	DKL 45°
Maximum Operating Pressure	10.0 MPa
Body Material	Steel	Hose I.D. (size)	-16
Shape	Elbow 45°	Hex Type	Metric
Port Connection	28 mm	Connection 2 Type	Female Metric L - Swivel (Ball Nose for 24° or 60° Cone)

Product resources

Compliance, Certifications & Safety

Literature and Reference Materials

Parker Hydraulic Hoses, Fittings and Equipment Catalogue CAT_4400_UK--(English)
