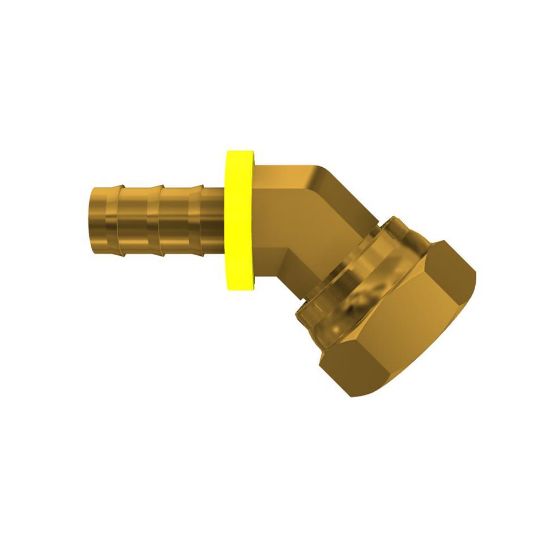

Push On Field Attachable Hydraulic Hose Fitting - 82 Series - Europe - 39B82-12-6B

Name: Push On Field Attachable Hydraulic Hose Fitting - 82 Series - Europe - 39B82-12-6B
SKU: 39B82-12-6B
Availability: OutOfStock

Configure hose assemblies quickly and easily in the field without special tools with Parker’s 82 series one-piece, push-on field-attachable hydraulic fittings.

Availability:

Backordered

SKU: 39B82-12-6B

Qty:

Products specifications

Attribute name	Attribute value
Body Material	BRASS	Brand	Parker
Industry	Industrial Manufacturing Equipment	Technology	Fluid & Gas Handling
Division	Polymer Hose Division Europe	Connection 1 Type	Hose
Maximum Operating Pressure	n/a	Division	Polymer Hose Division Europe
Connection 1 Size	3/8 inch Hose I.D.	Tube Outside Diameter	12 mm
Connection Length	27 mm (see drawing legend B)	Fitting Length	50 mm (see drawing legend A)
Connection 2 Type	Swivel	Shape	Elbow 45°
Connection 2 Size	M18x1.5 mm Thread	Hex Size	22 mm (see drawing legend W)
Drop Length	17 mm (see drawing legend E)	Port Type	DKR
Specifications Met	BS 5200-A	Product Type	Barbed Fittings\|Push-Lok Hose Fittings
Application	Paper Machines	For Fluid Type	Coolants (Glycol)
Body Material	BRASS	Hose I.D. (size)	-6
Shape	Elbow 45°	Hex Type	Metric
Port Connection	12 mm	Connection 2 Type	Female Metric L - Swivel Compact (Ball Nose for 24° or 60° Cone)

Product resources

Compliance, Certifications & Safety

Literature and Reference Materials

Parker Hydraulic Hoses, Fittings and Equipment Catalogue CAT_4400_UK--(English)
