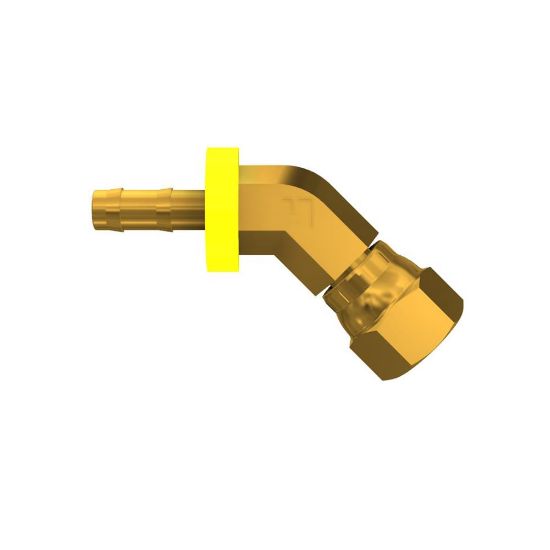

Push On Field Attachable Hydraulic Hose Fitting - 82 Series - Europe - 36C82-15-8B

Name: Push On Field Attachable Hydraulic Hose Fitting - 82 Series - Europe - 36C82-15-8B
SKU: 36C82-15-8B
Availability: OutOfStock

Configure hose assemblies quickly and easily in the field without special tools with Parker’s 82 series one-piece, push-on field-attachable hydraulic fittings.

Availability:

Backordered

SKU: 36C82-15-8B

Qty:

Products specifications

Attribute name	Attribute value
Industry	Industrial Manufacturing Equipment	Body Material	BRASS
For Fluid Type	Fuels - Check fuel type with our catalogue chart.	Application	Injection Moulding Machines
Connection 1 Type	Hose	Product Type	Barbed Fittings\|Push-Lok Hose Fittings
Division	Polymer Hose Division Europe	Connection Length	28 mm (see drawing legend B)
Shape	Elbow 45°	Hex Size	27 mm (see drawing legend W)
Maximum Operating Pressure	25.0 MPa	Drop Length	18 mm (see drawing legend E)
Fitting Length	54 mm (see drawing legend A)	Brand	Parker
Connection 2 Size	M22x1.5 mm Thread	Connection 1 Size	12.7 mm Hose I.D.
Connection 2 Type	Swivel	Technology	Fluid & Gas Handling
Division	Polymer Hose Division Europe
Hose I.D. (size)	-8	Hex Type	Metric
Connection 2 Type	Female - Swivel (60° Cone)	Shape	Elbow 45°
Body Material	BRASS	Port Connection	15 mm

Product resources

Compliance, Certifications & Safety

Literature and Reference Materials

Parker Hydraulic Hoses, Fittings and Equipment Catalogue CAT_4400_UK--(English)
