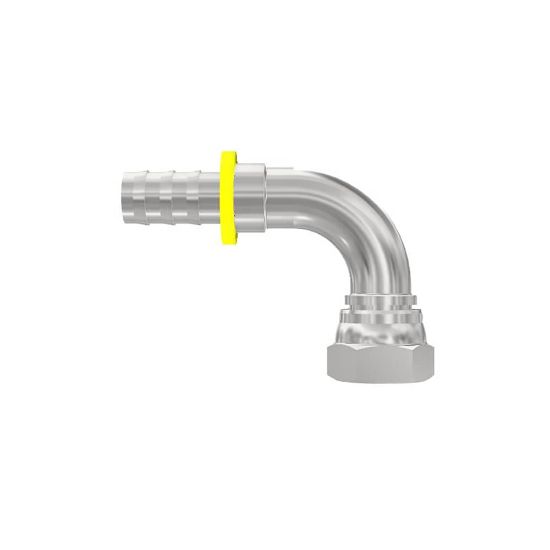

Push On Field Attachable Hydraulic Hose Fitting - 82 Series - Europe - 33982-6-6-SM

Name: Push On Field Attachable Hydraulic Hose Fitting - 82 Series - Europe - 33982-6-6-SM
SKU: 33982-6-6-SM
Availability: OutOfStock

Configure hose assemblies quickly and easily in the field without special tools with Parker’s 82 series one-piece, push-on field-attachable hydraulic fittings.

Availability:

Backordered

SKU: 33982-6-6-SM

Qty:

Products specifications

Attribute name	Attribute value
Body Material	Steel	Brand	Parker
Industry	Industrial Manufacturing Equipment	Technology	Fluid & Gas Handling
Division	Polymer Hose Division Europe	Connection 1 Type	Hose
Division	Polymer Hose Division Europe	Maximum Operating Pressure	35.0 MPa
For Fluid Type	Lubricants (Oils)	Connection 1 Size	3/8 inch Hose I.D.
Connection 2 Size	9/16"-18 inch Thread	Connection 2 Type	JIC 37°
Fitting Length	47 mm (see drawing legend A)	Connection Length	25 mm (see drawing legend B)
Port Type	DKJ	Drop Length	23 mm (see drawing legend E)
Specifications Met	ISO 12151-5-SWES	Shape	Elbow 90° Short Drop
Product Type	Barbed Fittings\|Push-Lok Hose Fittings	Application	Transfer Lines
Hex Size	19 inch (see drawing legend W)
Body Material	Steel	Hose I.D. (size)	-6
Connection 2 Type	Female JIC 37° - Swivel	Hex Type	Metric
Shape	Elbow 90°	Port Connection	9/16"

Product resources

Literature and Reference Materials

Parker Hydraulic Hoses, Fittings and Equipment Catalogue CAT_4400_UK--(English)
