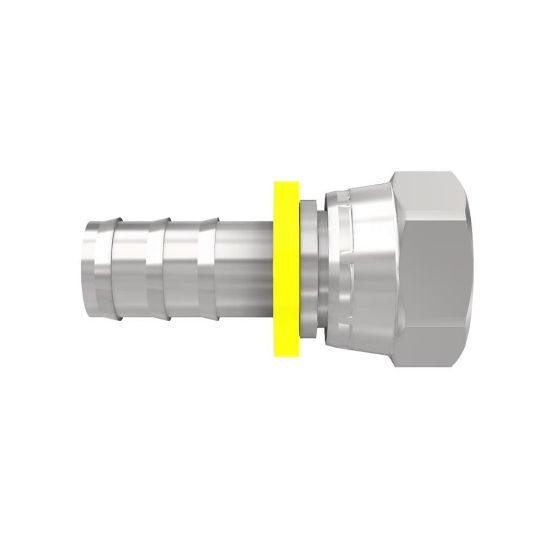

Push On Field Attachable Hydraulic Hose Fitting - 82 Series - Europe - 30682-16-16C-SM

Name: Push On Field Attachable Hydraulic Hose Fitting - 82 Series - Europe - 30682-16-16C-SM
SKU: 30682-16-16C-SM
Availability: OutOfStock

Configure hose assemblies quickly and easily in the field without special tools with Parker’s 82 series one-piece, push-on field-attachable hydraulic fittings.

Availability:

Backordered

SKU: 30682-16-16C-SM

Qty:

Products specifications

Attribute name	Attribute value
Brand	Parker	Shape	Straight
Application	Machine Tools	Body Material	Stainless Steel
Industry	Industrial Manufacturing Equipment	Technology	Fluid & Gas Handling
Connection 1 Size	-16 (Size)	Division	Polymer Hose Division Europe
Connection 1 Type	Hose	Division	Polymer Hose Division Europe
Connection Length	33 mm (see drawing legend B)	For Fluid Type	Air (General Industrial Air)
Maximum Operating Pressure	28.0 MPa	Connection 2 Size	1-5/16"-12 inch Thread
Connection 2 Type	JIC 37°	Port Type	DKJ
Fitting Length	70 mm (see drawing legend A)	Specifications Met	ISO 12151-5-SWS
Product Type	Barbed Fittings\|Push-Lok Hose Fittings	Hex Size	41 inch (see drawing legend W)
Shape	Straight	Body Material	Stainless Steel
Port Connection	1"	Hose I.D. (size)	-16
Connection 2 Type	Female JIC 37°/SAE 45° Dual Flare - Swivel	Hex Type	Metric
