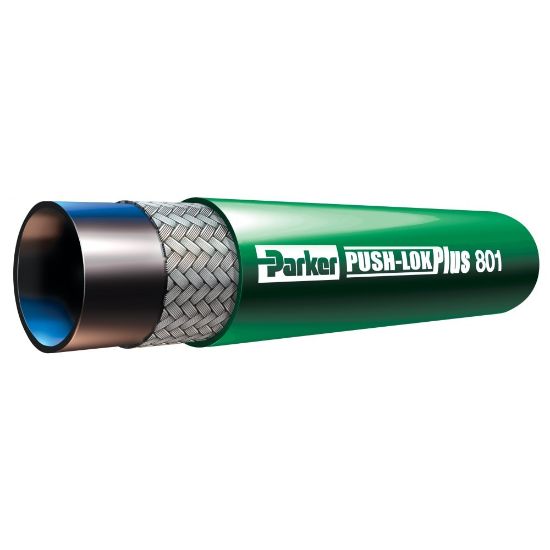

Push-Lok Plus Multipurpose Hose 200-350 PSI – 801 Hose - 801-6-GRN

Parker's 801 hose has a pressure range of 200-350 PSI, and is amongst the Push-Lok Plus multipurpose hose line which features the widest fluid compatibility, application range and size range in the industry.

Availability:	337 in stock
Partner Available:	250 in stock

SKU: 801-6-GRN

$3.49

Products specifications

Attribute name	Attribute value
Division	Hose Products Division	Design Factor	4:1
Weight	0.16 kg/m	Maximum Operating Pressure	350 psi
Size	-6	Inside Diameter	10 mm
Vacuum Pressure Rating	711 mm-Hg	Specifications Met	N/A
Application	Petroleum Base Hydraulic Fluids	Outside Diameter	15.9 mm
Hose Inner Tube Material	Synthetic Rubber	Minimum Bend Radius	75 mm
Hose Reinforcement Material	1 Braid of Fiber	Nominal Hose Inside Diameter	10 mm
Media	Petroleum Hydraulic Fluids	Cover Material	MSHA Approved
Compatible Fitting	HY Series	Maximum Operating Temperature	70 °C (Air)
Minimum Operating Temperature	-40 °C (Oil)
Color	GREEN	Hose I.D. (size)	-6
