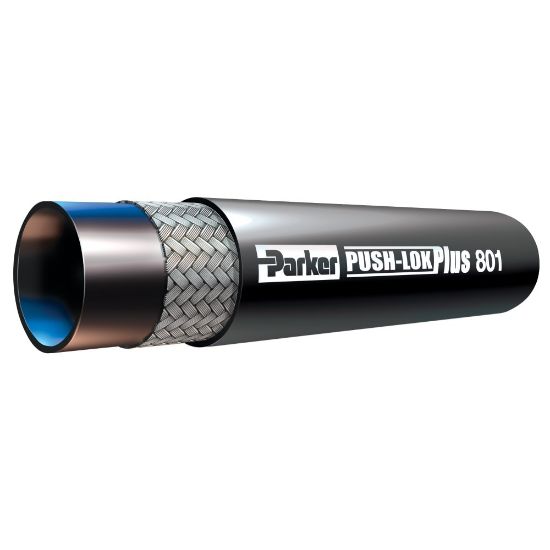

Push-Lok Plus Multipurpose Hose 200-350 PSI – 801 Hose - 801-4-BLK

Parker's 801 hose has a pressure range of 200-350 PSI, and is amongst the Push-Lok Plus multipurpose hose line which features the widest fluid compatibility, application range and size range in the industry.

Availability:	679 in stock
Partner Available:	2193 in stock

SKU: 801-4-BLK

$2.80

Products specifications

Attribute name	Attribute value
Division	Hose Products Division	Size	-4
Weight	0.13 kg/m	Design Factor	4:1
Vacuum Pressure Rating	711 mm-Hg	Specifications Met	N/A
Application	Antifreeze Solutions	Media	Coolants
Outside Diameter	12.7 mm	Inside Diameter	6.3 mm
Minimum Bend Radius	2-1/2 inch	Hose Inner Tube Material	Synthetic Rubber
Maximum Operating Pressure	2.4 MPa	Hose Reinforcement Material	1 Braid of Fiber
Nominal Hose Inside Diameter	6 mm	Cover Material	MSHA Approved
Compatible Fitting	HY Series	Maximum Operating Temperature	70 °C (Air)
Minimum Operating Temperature	-40 °C (Oil)
Color	BLACK	Hose I.D. (size)	-4
