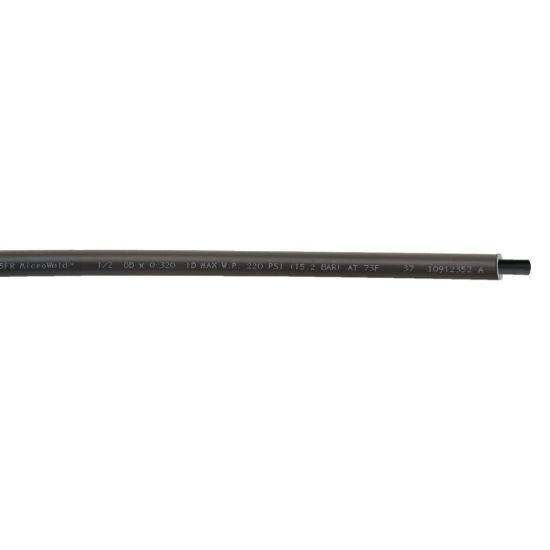

PU Tubing - Flame Resistant - 95FR-6-BLK-0250

Name: PU Tubing - Flame Resistant - 95FR-6-BLK-0250
SKU: 95FR-6-BLK-0250
Availability: OutOfStock

MicroWeld™ PolyurethaneTubing - 95FR is ideal for low to medium pressure air and water supply lines where weld spatter protection is required.

Availability:

Backordered

SKU: 95FR-6-BLK-0250

Qty:

Products specifications

Attribute name	Attribute value
Maximum Operating Temperature	75 °C	Application	Robotics
Tube Outside Diameter	9.5 mm	Length per Package	250 ft
Minimum Operating Temperature	-40 °F	Cover Color	Black
Division	Parflex Division	Weight	0.103 kg/m
Maximum Operating Pressure	16.5 bar	Cover Thickness	0.045 inch
Product Type	Fractional	Tube Material	Polyurethane
Diameter	11.8 mm	Minimum Burst Pressure	4.8 MPa
Cover Material	Proprietary Material	Minimum Bend Radius	25.5 mm
Tube Inside Diameter	0.250 inch	Compatible Fitting	68PLM
Product Type	Inch	Order Size	-6
Standard Pack Qty (ft)	250.0	Color	BLACK
