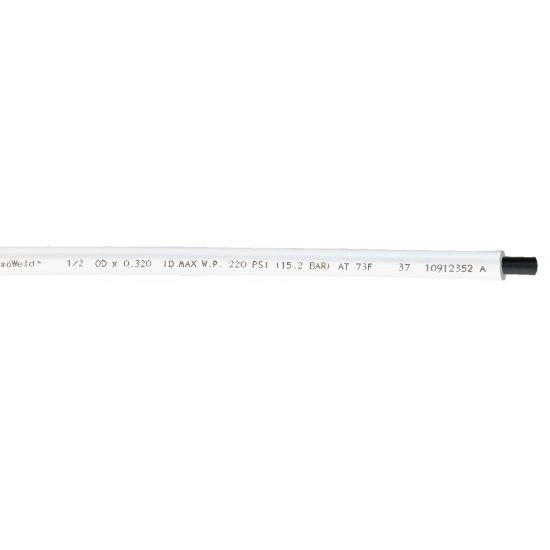

PU Tubing - Flame Resistant - 95FR-4-WHT-0250

Name: PU Tubing - Flame Resistant - 95FR-4-WHT-0250
SKU: 95FR-4-WHT-0250
Availability: OutOfStock

MicroWeld™ PolyurethaneTubing - 95FR is ideal for low to medium pressure air and water supply lines where weld spatter protection is required.

Availability:

Backordered

SKU: 95FR-4-WHT-0250

Qty:

Products specifications

Attribute name	Attribute value
Tube Inside Diameter	3.0 mm	Length per Package	250 ft
Division	Parflex Division	Minimum Operating Temperature	-40 °F
Maximum Operating Temperature	165 °F	Diameter	8.6 mm
Minimum Bend Radius	3/4 inch	Application	Welding
Cover Thickness	0.045 inch	Cover Color	White
Product Type	Fractional	Tube Outside Diameter	6.4 mm
Minimum Burst Pressure	50 bar	Tube Material	Polyurethane
Weight	0.042 lb/ft	Cover Material	Proprietary Material
Compatible Fitting	68PLM	Maximum Operating Pressure	240 psi
Product Type	Inch	Standard Pack Qty (ft)	250.0
Color	WHITE	Order Size	-4
