PTFE Tubing - 201-0300100-NT-25

Name: PTFE Tubing - 201-0300100-NT-25
SKU: 201-0300100-NT-25
Availability: OutOfStock

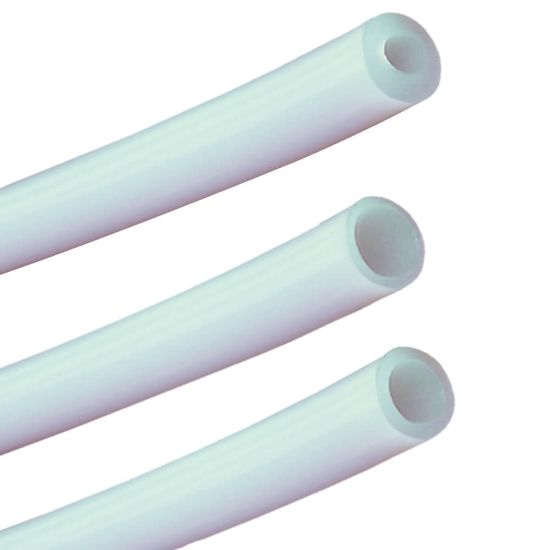

PTFE Tubing – Series 101/201 is a high temperature tubing operating up to 500°F/260°C. Fluoroplastic tubing is chemically inert, corrosion resistant, and features the lowest coefficient of friction of any tubing.

Availability:

Backordered

SKU: 201-0300100-NT-25

Qty:

Products specifications

Attribute name	Attribute value
Specifications Met	UL 94 V-0	Minimum Burst Pressure	1560 psi
Size	3 mm	Color	Natural
Tube Material	Polytetrafluoroethylene (PTFE)	Maximum Operating Temperature	260 °C
Weight	0.014 kg/m	Maximum Operating Pressure	27 bar
Minimum Bend Radius	1/2 inch	Media	Chemicals (Adhesives)
Length per Package	7.6 m	Minimum Operating Temperature	-75 °C
Tube Inside Diameter	1 mm	Tube Outside Diameter	0.118 inch
Application	Food & Beverage	Product Type	Metric
Compatible Fitting	n/a
Order Size	3MM	Tube Inside Diameter	1
Product Type	Metric	Tube Wall Thickness	1
Standard Pack Qty (ft)	25.0	Tube Outside Diameter	3
