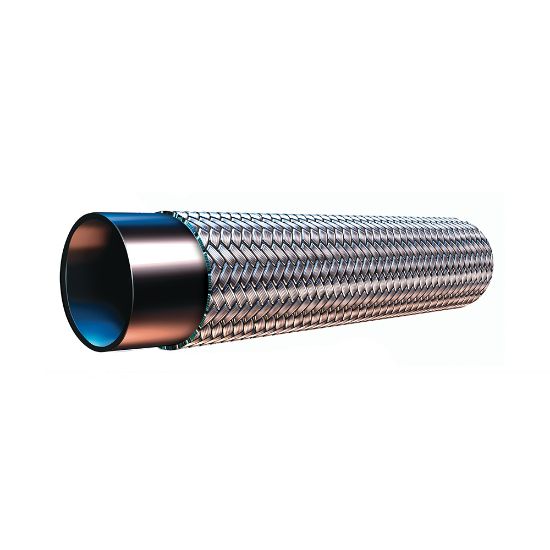

PTFE Hose - 929B - 929B-8

PTFE Hose 929B features a heavier wall for improved kink resistance and enhanced resistance to gas permeation over 919/919B hose. Use in a wide temperature range from -100°F to +450°F.

Availability:	2 in stock
Partner Available:	277 in stock

SKU: 929B-8

$15.49

Products specifications

Attribute name	Attribute value
Minimum Bend Radius	117 mm	Size	-8
Division	Parflex Division	Hose Inner Tube Material	Polytetrafluoroethylene (PTFE) Static Dissipative
Maximum Operating Pressure	138 bar	Outside Diameter	0.590 inch
Application	High Temperature Hydraulics	Hose Reinforcement Material	Braid of 304 Stainless Steel
Product Type	PTFE Hose	Design Factor	4:1
Inside Diameter	10 mm	Product Style	Static Dissipative
Cover Material	n/a	Specifications Met	SAE 100R1, Type 4B
Maximum Operating Temperature	450 °F	Compatible Fitting	91N Series
Vacuum Pressure Rating	711.2 mm-Hg	Minimum Operating Temperature	-73 °C
Weight	0.23 kg/m	Media	Lubricants (Oils)
Hose Style	Static Dissipative PTFE	Hose I.D. (inch)	13/32
