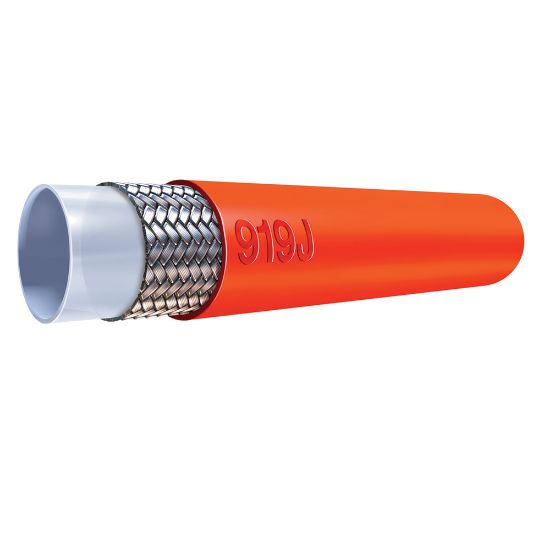

PTFE Hose - 919 Series - 919J-16-RED

Name: PTFE Hose - 919 Series - 919J-16-RED
SKU: 919J-16-RED
Availability: OutOfStock

PTFE hoses feature superior chemical compatibility, resist moisture, perform in a wide temperature range and offer a low coefficient of friction to assist with flow. Most 919 hoses handle temperatures up to 450°F.

Availability:

Backordered

SKU: 919J-16-RED

Qty:

Products specifications

Attribute name	Attribute value
Minimum Bend Radius	9 inch	Hose Reinforcement Material	Braid of Stainless Steel
Cover Material	Silicone	Specifications Met	SAE 100R1, Type 4A
Application	Adhesive Dispensing	Outside Diameter	30.2 mm
Size	-16	Division	Parflex Division
Maximum Operating Temperature	232 °C	Minimum Operating Temperature	-40 °F
Hose Inner Tube Material	Natural	Inside Diameter	7/8 inch
Weight	0.56 kg/m	Product Type	PTFE Hose
Design Factor	4:1	Media	Coolants
Maximum Operating Pressure	1000 psi	Compatible Fitting	91N Series
Product Style	Smoothbore	Vacuum Pressure Rating	355 mm-Hg
Length	Random	Hose Type	Silicone Jacket, Natural
Size	-16
