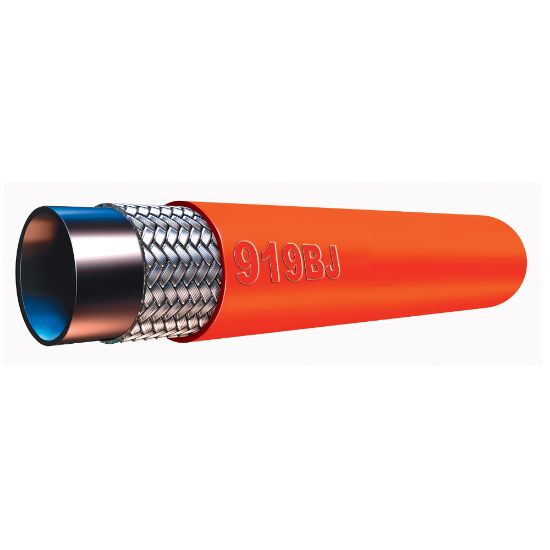

PTFE Hose - 919 Series - 919BJ-5-ORG

Name: PTFE Hose - 919 Series - 919BJ-5-ORG
SKU: 919BJ-5-ORG
Availability: OutOfStock

PTFE hoses feature superior chemical compatibility, resist moisture, perform in a wide temperature range and offer a low coefficient of friction to assist with flow. Most 919 hoses handle temperatures up to 450°F.

Availability:

Backordered

SKU: 919BJ-5-ORG

Qty:

Products specifications

Attribute name	Attribute value
Minimum Operating Temperature	-40 °C	Hose Inner Tube Material	Polytetrafluoroethylene (PTFE) Static Dissipative
Maximum Operating Temperature	232 °C	Maximum Operating Pressure	207 bar
Design Factor	4:1	Weight	0.14 lb/ft
Product Type	PTFE Hose	Outside Diameter	13.2 mm
Specifications Met	SAE 100R1, Type 4B	Application	Chemical Transfer
Media	Chemicals (Adhesive)	Compatible Fitting	91N Series
Product Style	Smoothbore	Cover Material	Silicone
Minimum Bend Radius	75 mm	Hose Reinforcement Material	Braid of Stainless Steel
Vacuum Pressure Rating	28 Inch-Hg	Inside Diameter	1/4 inch
Size	-5	Division	Parflex Division
Length	Random	Hose Type	Silicone Jacket, Static Dissipative
Size	-5
