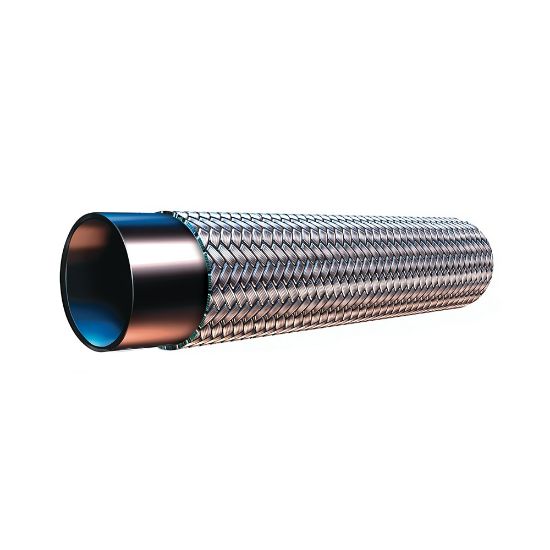

PTFE Hose - 919 Series - 919B-8

PTFE hoses feature superior chemical compatibility, resist moisture, perform in a wide temperature range and offer a low coefficient of friction to assist with flow. Most 919 hoses handle temperatures up to 450°F.

Availability:	9 in stock
Partner Available:	946 in stock

SKU: 919B-8

$14.73

Products specifications

Attribute name	Attribute value
Application	Compressed Air/Gases	Specifications Met	SAE 100R1, Type 4B
Vacuum Pressure Rating	711 mm-Hg	Product Style	Smoothbore
Hose Reinforcement Material	Braid of Stainless Steel	Inside Diameter	10.4 mm
Maximum Operating Temperature	232 °C	Outside Diameter	0.560 inch
Size	-8	Maximum Operating Pressure	138 bar
Weight	0.13 lb/ft	Compatible Fitting	90 Series
Division	Parflex Division	Hose Inner Tube Material	Polytetrafluoroethylene (PTFE) Static Dissipative
Design Factor	4:1	Media	Industrial Fluids
Minimum Operating Temperature	-100 °F	Product Type	PTFE Hose
Minimum Bend Radius	5 inch	Cover Material	n/a
Hose Type	SS Braid, Static Dissipative	Size	-8
Length	Random
