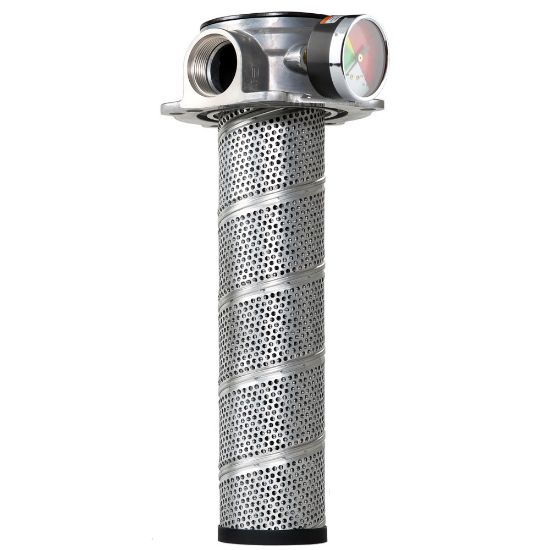

Low Pressure Tank Top Filters PT Series - PT4305QVGGS201

Name: Low Pressure Tank Top Filters PT Series - PT4305QVGGS201
SKU: PT4305QVGGS201
Availability: OutOfStock

Parker’s PT Series Return Line Filters combine high efficiency Microglass filtration with low cost installation in a patented design. Allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 50 GPM/180 LPM depending on viscosity.

Availability:

Backordered

SKU: PT4305QVGGS201

Qty:

Products specifications

Attribute name	Attribute value
Filter Element Type	05Q Microglass	Seal Material	Fluorocarbon
For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids	Division	Engine Mobile Hydraulic and Fuel Filtration Division
Bypass Valve Pressure Rating	25.0 psid	Pressure Rating	10.3 bar
Options	Tank Mounted	Compatible Element	936877
Indicator Type	Pressure gauge, 25 psi	Housing Material	Aluminum
Indicator Pressure Setting	No indicator	Mounting Style	Tank Mounted
Weight	1.21 kg	Flow Rate	208.2 L/min
Maximum Operating Temperature	225.0 °F
Options	None	Indicator Type	Pressure gauge, 25 psi
Flow Rate	55 gpm (208.2 lpm)	Seal Material	Fluorocarbon
Filter Element Type	05Q Microglass	Port Connection Type	SAE-20
Bypass Valve Pressure Rating	25 psid (1.7 bar)
