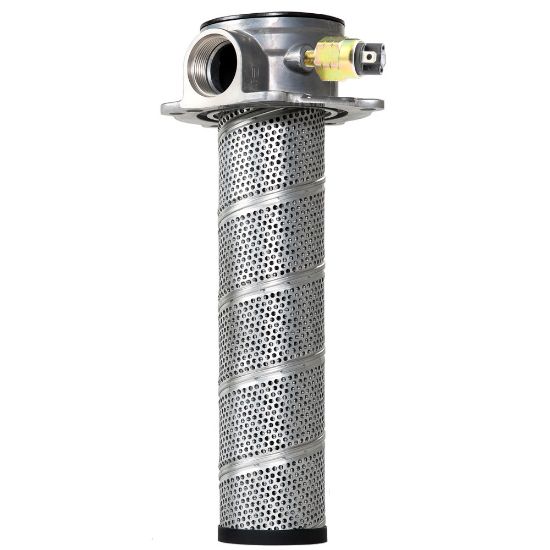

Low Pressure Tank Top Filters PT Series - PT4302QBSGS16W

Name: Low Pressure Tank Top Filters PT Series - PT4302QBSGS16W
SKU: PT4302QBSGS16W
Availability: OutOfStock

Parker’s PT Series Return Line Filters combine high efficiency Microglass filtration with low cost installation in a patented design. Allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 50 GPM/180 LPM depending on viscosity.

Availability:

Backordered

SKU: PT4302QBSGS16W

Qty:

Products specifications

Attribute name	Attribute value
Flow Rate	55.0 Gal/min	Maximum Operating Temperature	225.0 °F
Mounting Style	Tank Mounted	Bypass Valve Pressure Rating	1.7 bar
Compatible Element	936876	Filter Element Type	02Q Microglass
Seal Material	Nitrile	Indicator Pressure Setting	Steel Weld Ring
For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids	Housing Material	Aluminum
Weight	2.67 lb	Indicator Type	Pressure Switch
Division	Engine Mobile Hydraulic and Fuel Filtration Division	Options	Tank Mounted
Pressure Rating	10.3 bar
Options	Steel weld ring	Indicator Type	Pressure Switch
Seal Material	Nitrile	Filter Element Type	02Q Microglass
Flow Rate	55 gpm (208.2 lpm)	Port Connection Type	SAE-16
Bypass Valve Pressure Rating	25 psid (1.7 bar)
